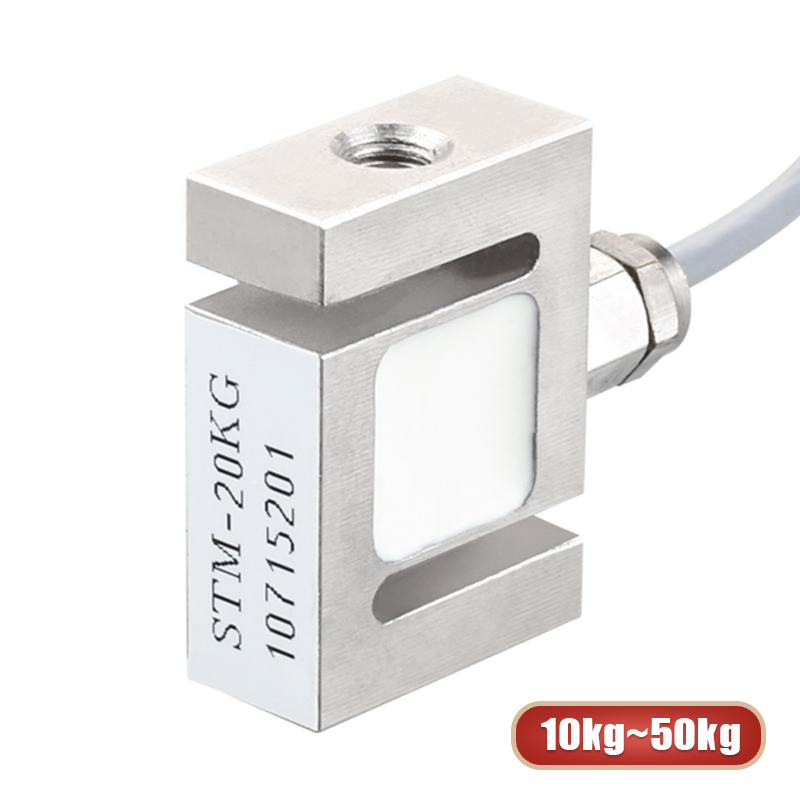

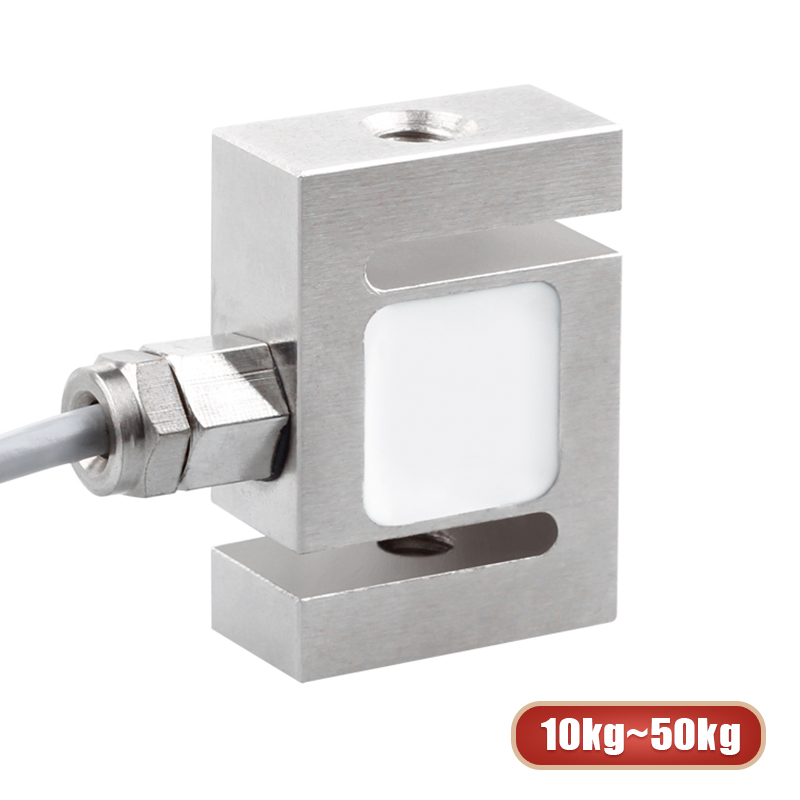

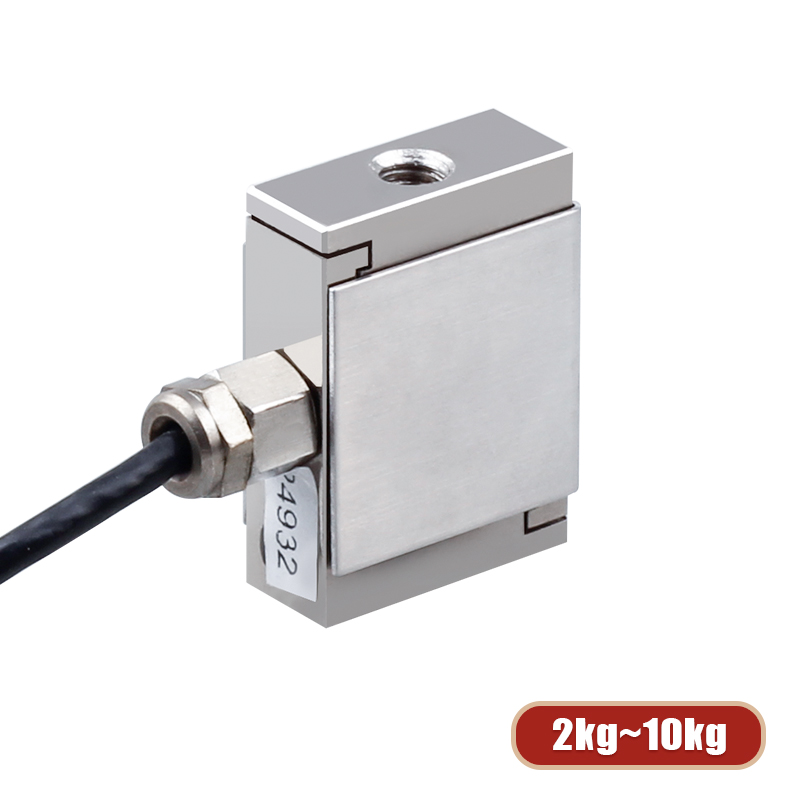

STM S-Type Micro Load Cell for Push-Pull Force Gauge
Short Description:
Features:
1.Capacities (kg):2~50
2.High-quality alloy steel, nickel-plated surface
3.Stainless steel material optional
4.Protection class: IP65
5.Two-way force measurement, both tension and compression
6.Compact structure, easy installation
7.High comprehensive precision and good long-term stability
Applications:
- Push-pull force gauge
- Pull stress test
- It can be installed inside the instrument to monitor the force
Description:
The S-type load cell is named S-type load cell because of its special shape, and it is a dual-purpose sensor for tension and compression. Compact structure, easy installation, easy disassembly, STM is made of stainless steel, the measuring range ranges from 2kg to 50kg, strong corrosion resistance, can effectively prevent the intrusion of moisture and moisture, simple structure, small size, can be installed inside the instrument to control the force to monitor.

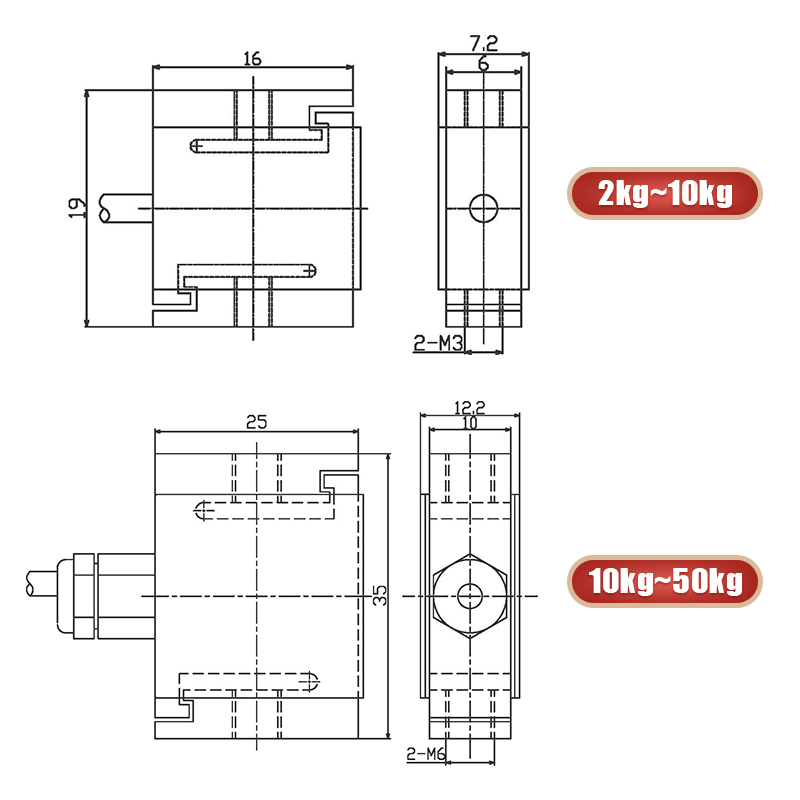

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 2,5,10,20,50 |
| Rated Output | mV/V | 2.0±0.0050 |
| Zero Balance | %R.O. | ±1 |
| Creep after 30 minutes | %R.O. | ±0.05 |
| Comprehensive Error | %R.O. | ±0.05 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.05 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.05 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Input impedance | Ω | 350±5 |
| Output impedance | Ω | 350±3 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Stainless Steel | |
| Degree of protection | IP65 | |
| The length of the cable | m | 1m(2kg-10kg),3m(10kg-50kg) |
