STP Micro S-Beam Load Cell for Tensile Testing
Short Description:
Our hopper scales use the STE S Type Alloy Steel Load Cell for accurate, reliable weighing. These strong load cells handle heavy loads. They give accurate measurements in industrial settings. Ideal for manufacturing, construction, and shipping, they combine strength with ease of use.
Features:
1.Capacities (kg):2kg~50kg
2.High-quality aluminum, nickel-plated surface
3.Aluminum material optional
4.Protection class: IP65
5.Two-way force measurement, both tension and compression
6.Compact structure, easy installation
7.High comprehensive precision and good long-term stability
Applications:
- Push-pull force gauge
- Pull stress test
Description:

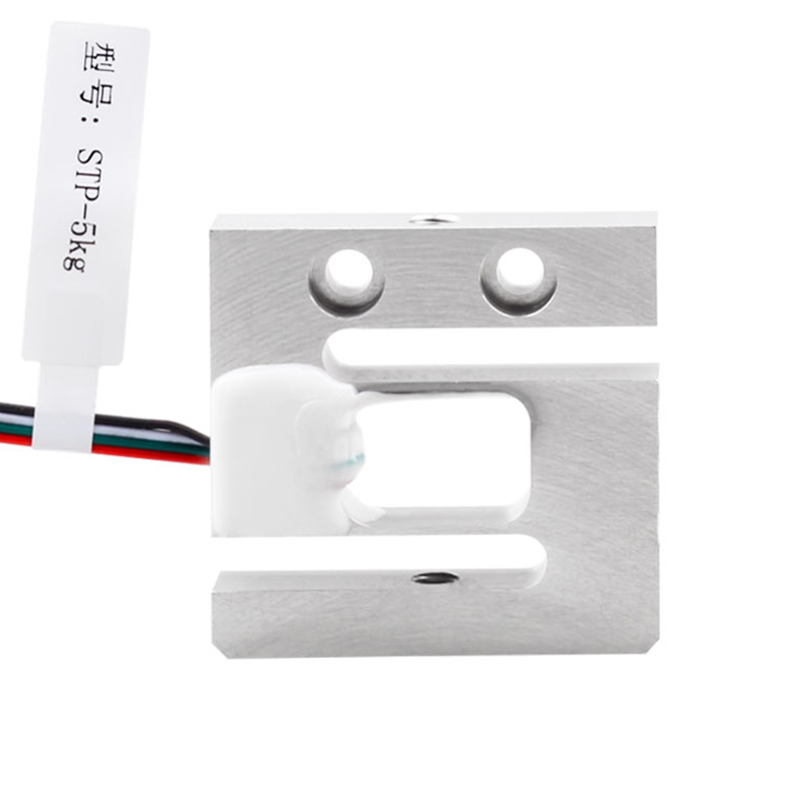

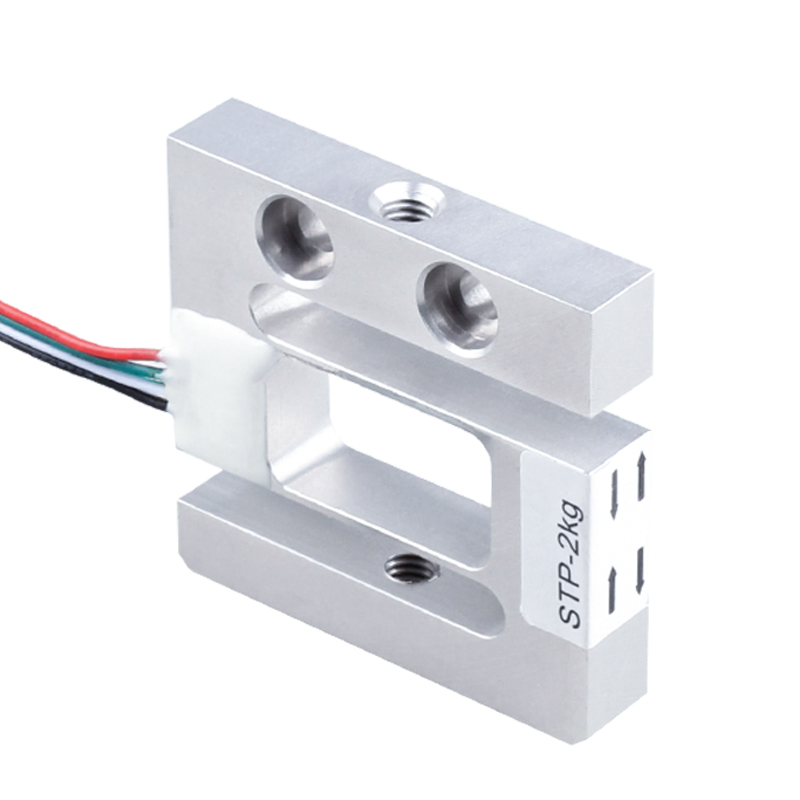

The S-type load cell is named S-type load cell because of its special shape, and it is a dual-purpose sensor for tension and compression. STP is made of aluminum alloy, surface anodized, glue sealing process, small size, light weight, small range, 2kg to 50kg, can be used with a single transmitter for tension and pressure testing, such as tension gauges, etc.

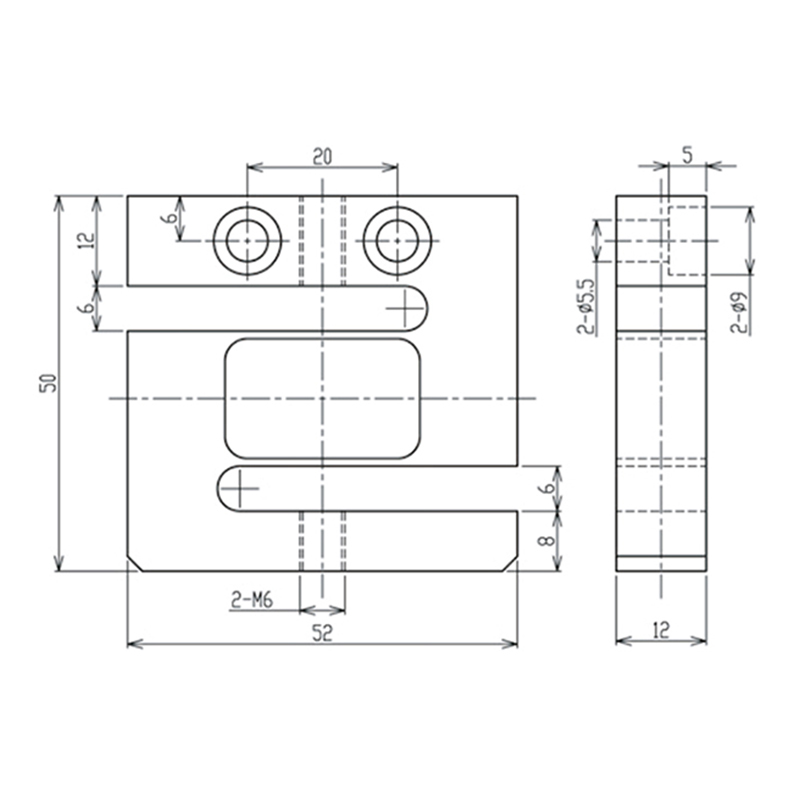

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 2,5,10,20,50 |
| Rated Output | mV/V | 1(2kg), 2(5-50kg) |
| Zero Balance | %R.O. | ±1 |
| Creep after 30 minutes | %R.O. | ±0.05 |
| Comprehensive Error | %R.O. | ±0.05 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Input impedance | Ω | 350±5 |
| Output impedance | Ω | 350±3 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 0.2 |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
