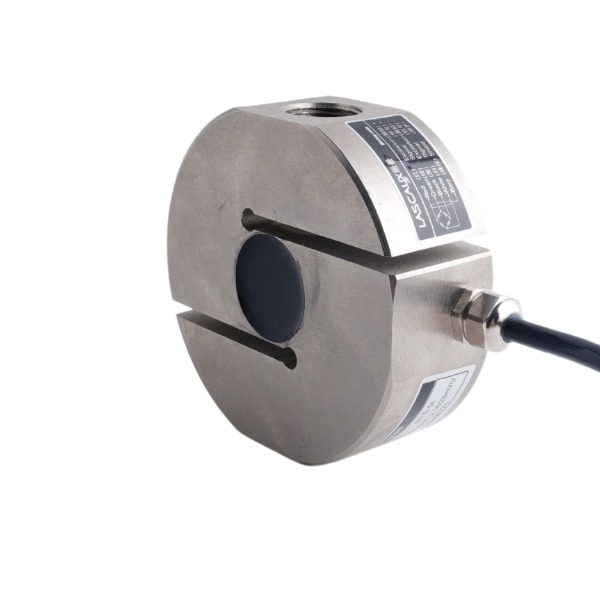

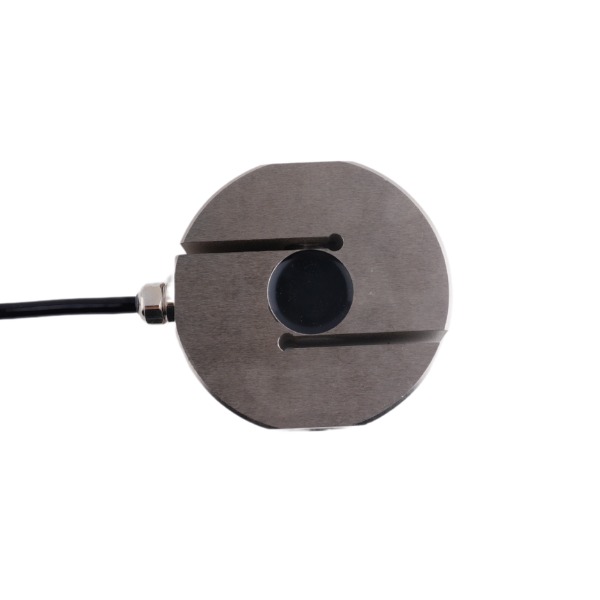

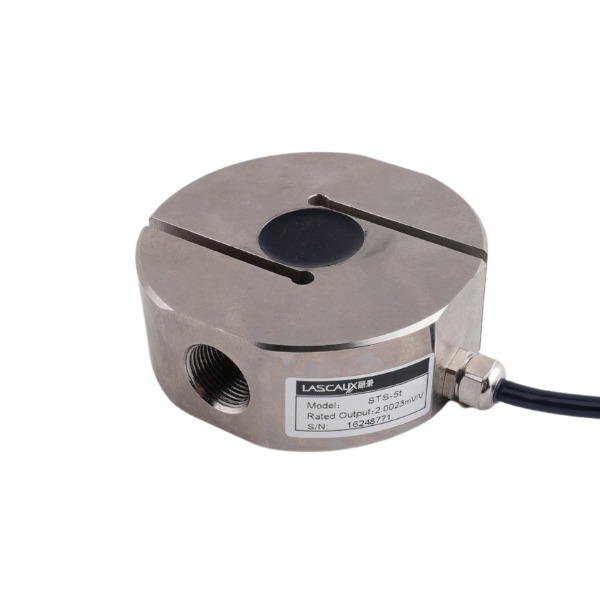

STS S Type Alloy Steel Load Cell For Hook Scales
Short Description:
Our STS S Type Alloy Steel Load Cell provides accurate, reliable weight measurements for hook scales. Perfect for shipping, mailing, and general industrial use, it combines strength with precision. Explore our hook scales and find the right solution for your weighing needs.
Features：
Load Cell Range: 15T
Bidirectional force measurement, tension and compression
Simple structure, easy to install
High overall accuracy, good long-term stability
Material: high-quality alloy steel
Protection level: IP67
Applications：
Hopper scale, tank scale
Belt scale, packaging scale
Hook scale, crane scale
Filling machine, batching weighing control
Universal material testing machine
Measurement of tension and pressure
Description：
STS is a circular tensile and compressive load cell. It’s made of alloy steel. It resists eccentric loading, has high precision, and offers good strength. Plus, it’s easy to install. It is a standard tool in many weighing and force measurement tasks. These include measuring force in industrial systems, overhead crane scales, track scales, and hoppers.

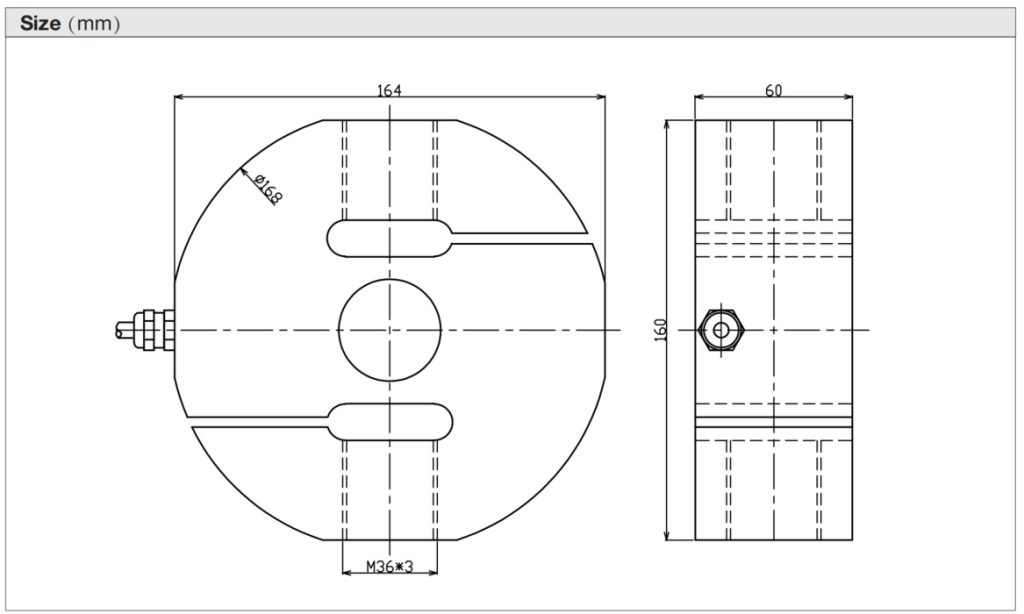

Dimensions：
Parameters：
| Specification | ||
| Specification | Value | Unit |
| Rated load | 15 | T |
| Rated output | 2 | mV/V |
| Zero balance | ±1 | %R.O. |
| Comprehensive Error | ±0.02 | %R.O. |
| Zero output | ≤±2 | %R.O. |
| Repeatability | <±0.02 | %R.O. |
| Creep (after 30 minutes) | ±0.02 | %R.O. |
| Normal operating temperature range | -10~+40 | ℃ |
| Allowable operating temperature range | -20~+70 | ℃ |
| Efect of temperature on zero point | ±0.02 | %R.O./10℃ |
| Effect of temperature on sensitivity | ±0.02 | %R.O./10℃ |
| Recommended excitation voltage | 5-12 | VDC |
| nput impedance | 385±10 | Ω |
| Output impedance | 350±5 | Ω |
| Insulation Resistance | ≥3000(50VDC) | MΩ |
| Safe overload | 150 | %R.C. |
| Limit overload | 300 | %R.C. |
| Material | Alloy steel | |
| Protection Class | IP67 | |
| Cable length | 10 | m |
