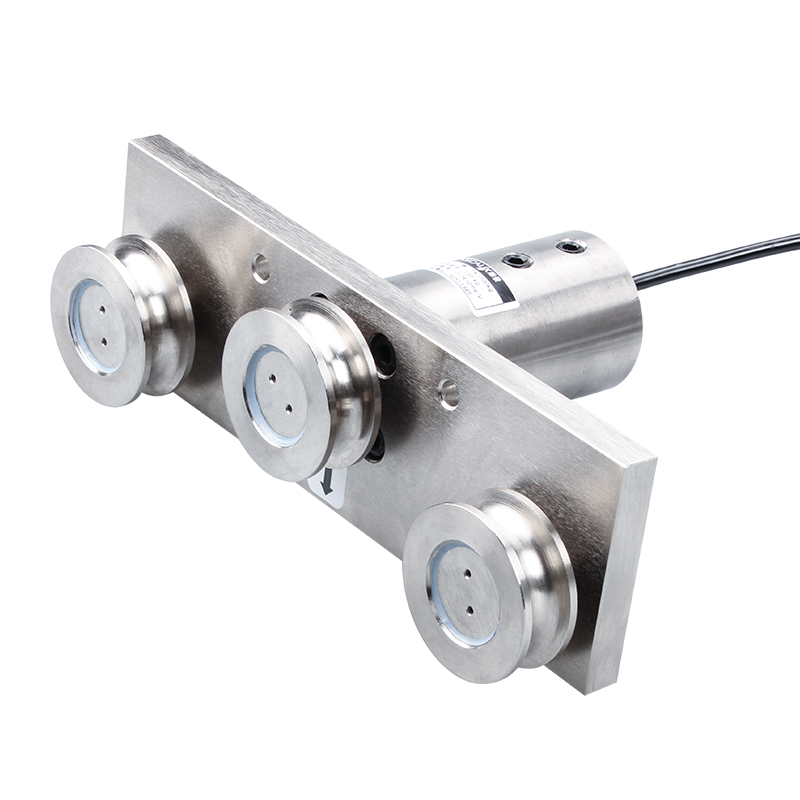

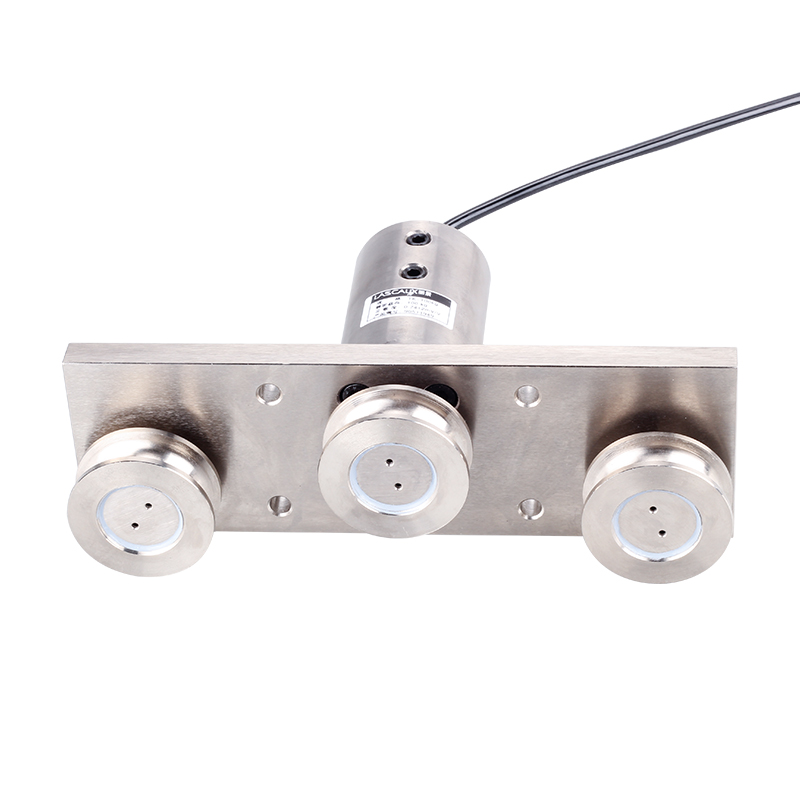

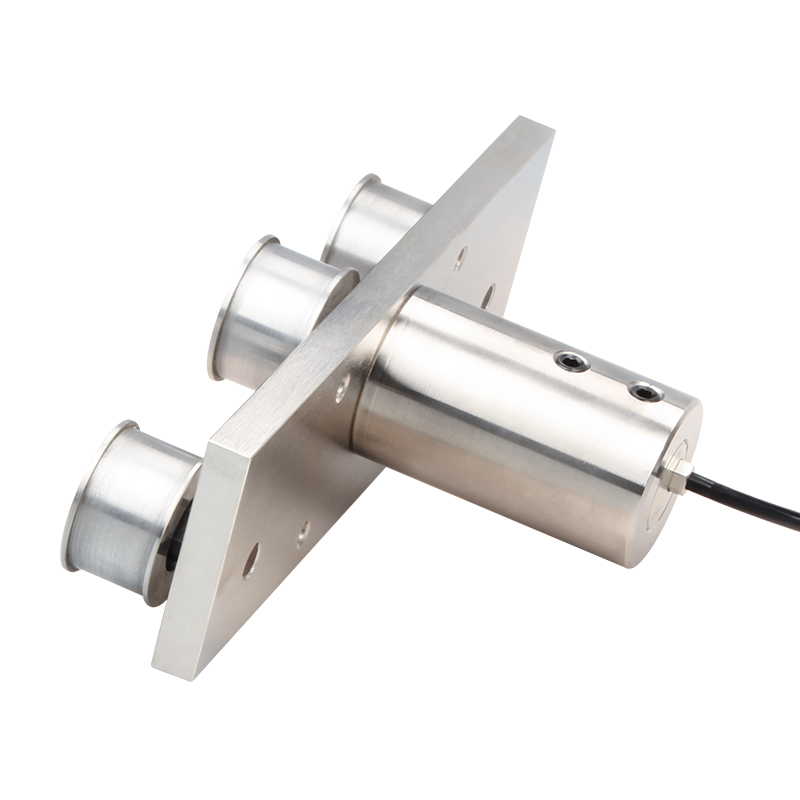

TK Three-roller online precise measurement tension sensor tension detector
Short Description:
Tension Load Cell Sensor from Labirinth load cell manufacturers,TK Three-Roller Online Precise Measurement Tension Sensor Tension Detector is made of alloy steel, which is IP65 protection. The weighing capacity is from 100kg to 1000kg.
Payment: T/T, L/C, PayPal
Features:
- Capacities (kg): 100 to 1000
- Resistance strain measurement methods
- Compact structure, durable in use，easy to install
- High comprehensive precision, high stability
- High quality alloy steel with nickel plating
- Roller is made of Alloy Steel
- Be matched with amplifiers, 0-10v or 4-20mA are available
- On-line tension measurement accurately
Applications:
- On-line rope tension measurement
- On-line continuous tension measurement of fibers, wires, metal wires and other products
Description:
TK tension sensor, the measuring range ranges from 100kg to 1t, and can also be customized according to customer needs. It has high measurement accuracy, good repeatability, durability, anti-corrosion and dust-proof, and high stability. It is made of alloy steel and nickel-plated on the surface. Can be used for a single sensor, it can be connected with a transmitter to obtain 0-10V or 4-20mA output for online continuous tension measurement of cables, fibers, wires, metal wires, etc. and similar products.

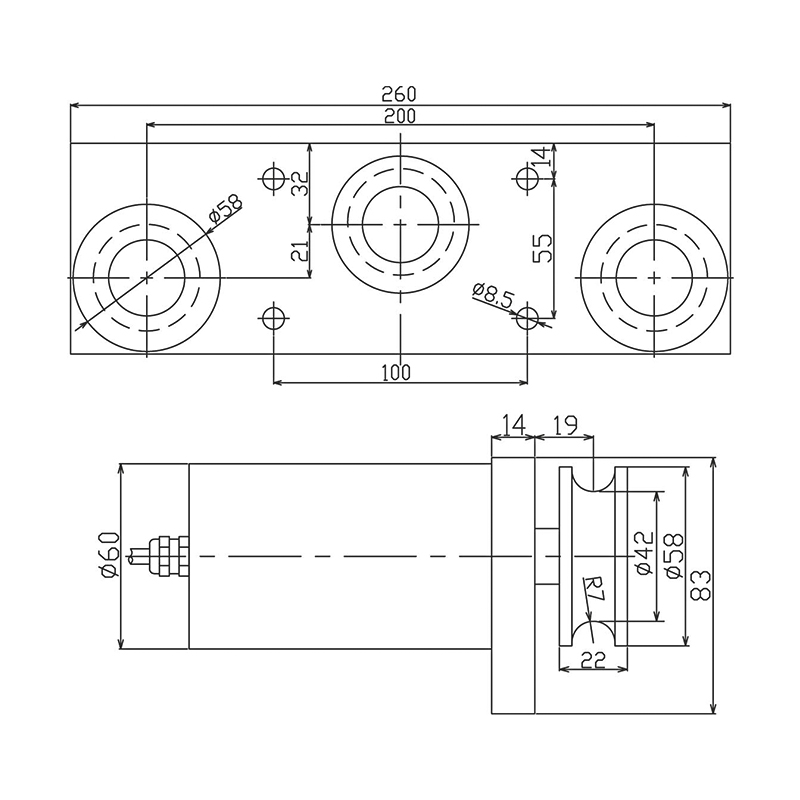

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 1,002,003,005,001,000 |
| Rated Output | mV/V | 1.5 |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.3 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.05 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.05 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 15 |
| Output impedance | Ω | 350±5 |
| Input impedance | Ω | 380±10 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Material | Alloy Steel | |
| Degree of protection | IP65 | |
| The length of the cable | m | 3m |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
