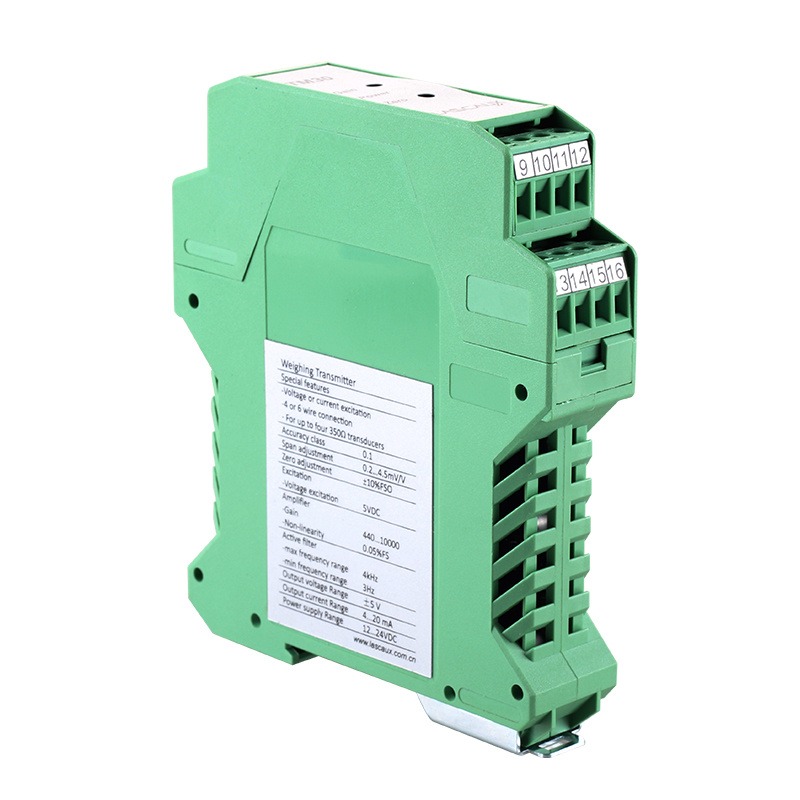

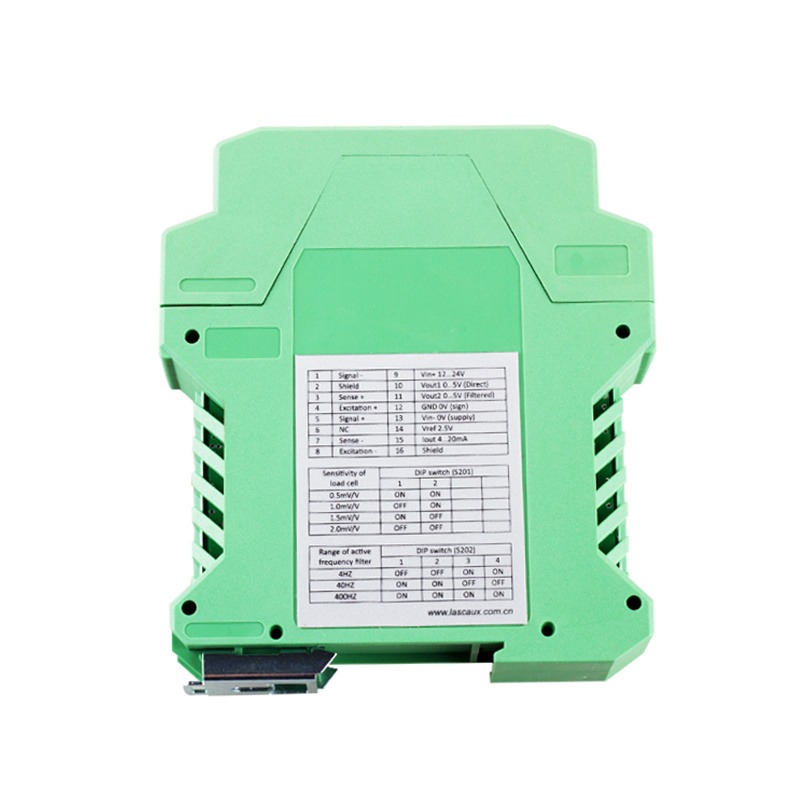

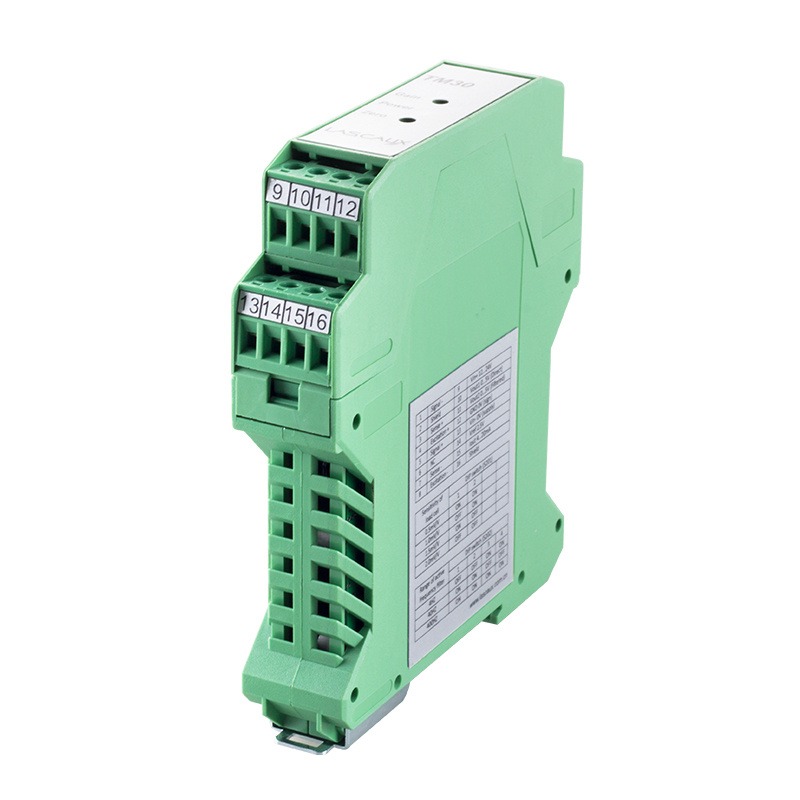

TM30 DIN Rail Mount Single-Channel Analog Transmitter for Load Cell Sensors
Short Description:
TM30 is a DIN rail mount single-channel analog transmitter supporting 0–5V and 4–20mA outputs. It allows 4- or 6-wire connection and can connect up to four 350 Ω sensors. You can configure the parameters with little effort using a DIP switch. The compact plastic housing allows for quick installation on a DIN rail.
Features：
1. Analog output of 0～5V,4～20mA.
2. 4 or 6 wire connection
3. 1 – four 350 Ω sensors can be connected
4. Parameter setting through DIP switch
5. The plastic housing can be mounted on DIN rail

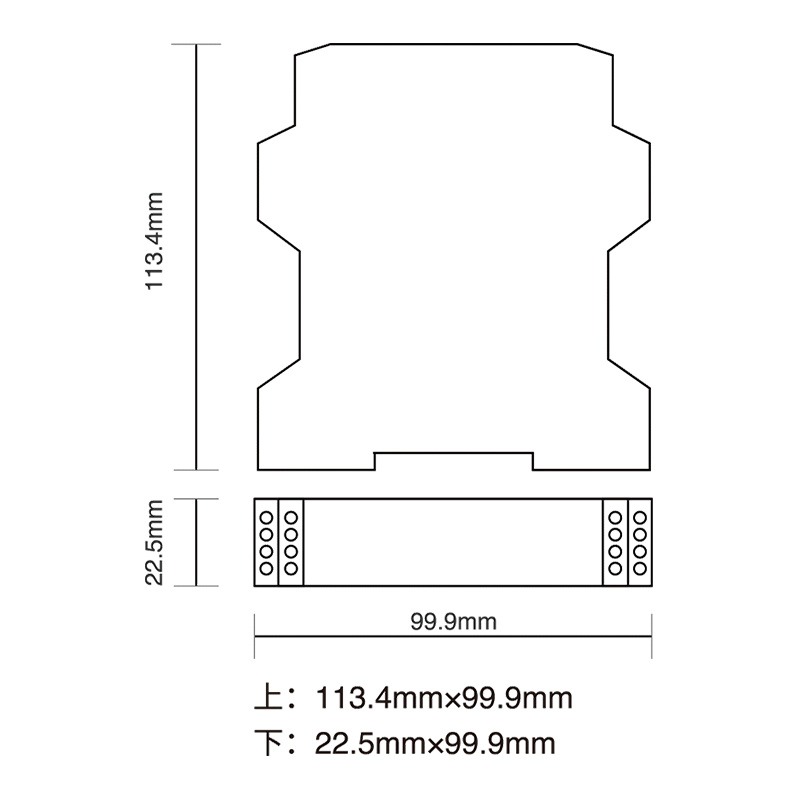

Dimensions：
Parameters：
| Specifications： | ||
| Precision Grade | 0.1 | |
| Sensitivity Adjustment | 0.2mV/V-4.5mV/V | |
| Excitation | Recommended Excitation Voltage | +7.5v -4.5v |
| Amplifier | Gain | 440-10000 |
| Input Offset Voltage Gain | 1uV/℃ | |
| Thermal Sensitivity Drift | 150ppm/℃ | |
| Non-linearity | 0.05%FS | |
| Active filter(Second order) | Maximum Frequency Range | 4KHz |
| Minimum Frequency Range | 3Hz | |
| Analog Voltage | Voltage Output | 0-5v |
| Current Output | 4-20mA | |
| Input Voltage | DC12-24V | |
| Temperature Range | Working Status | -10-+50℃ |
| Storage Status | -40-+85℃ | |
| Protection Class | IP20 | |
