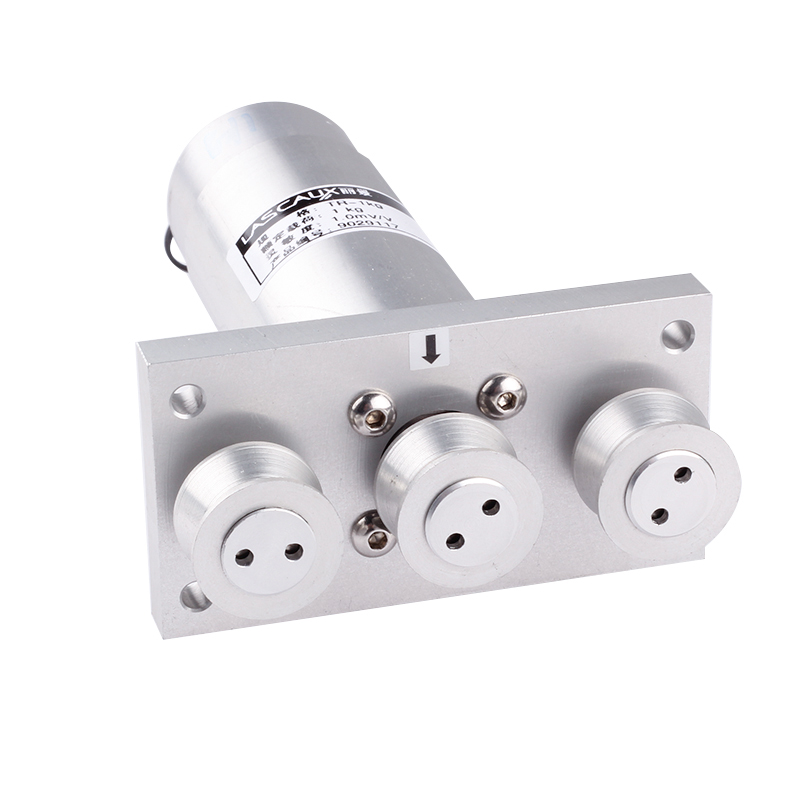

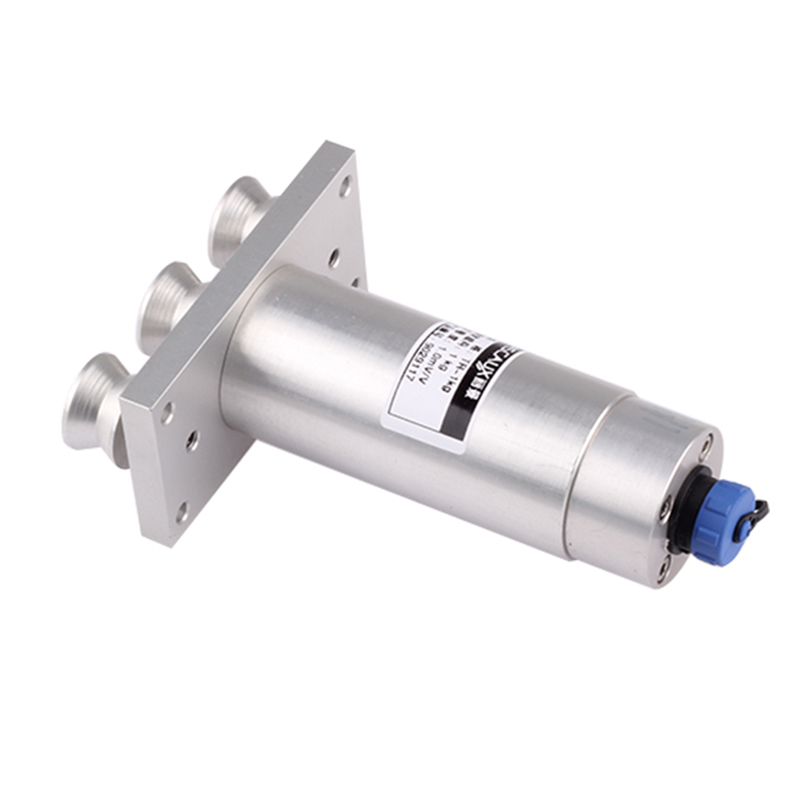

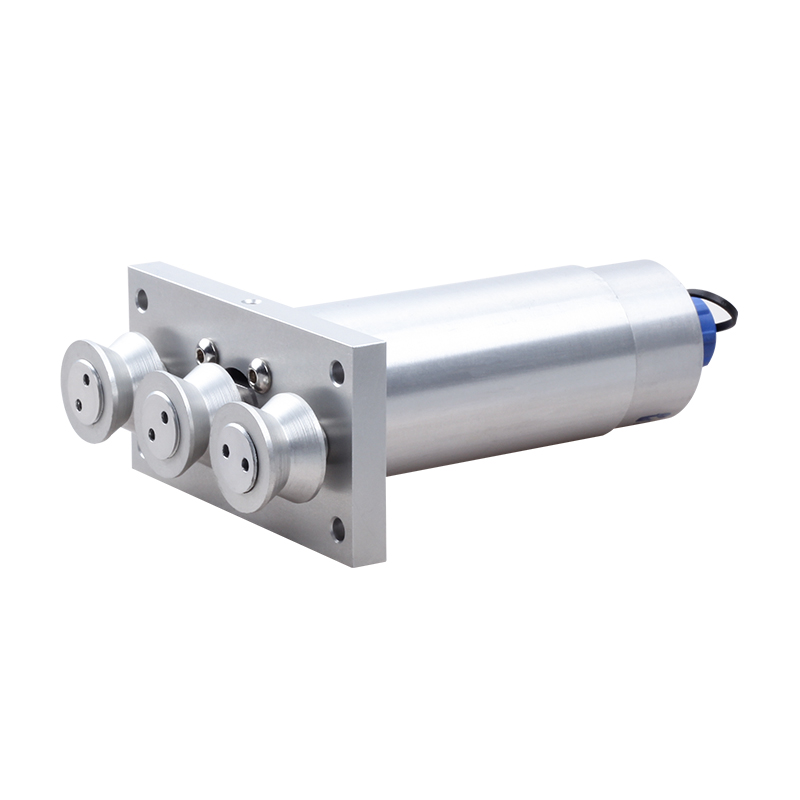

TR Wire and Strip Tension Sensor Three Roller Tension Measuring Instrument

Tension Load Cell Sensor from Labirinth load cell manufacturers,TR Wire and Strip Tension Sensor Three Roller Tension Measuring Instrument is made of alloy steel, which is IP65 protection. The weighing capacity is from 0.1kg to 50kg.

Payment: T/T, L/C, PayPal

Features:

1.  Capacities (kg):0.1 to 50
2.  Resistance strain measurement methods
3.  Compact structure, durable in use，easy to install
4.  High comprehensive precision, high stability
5.  Roller is made of Aluminum、chromium plating Alloy Steel、Plastic、Ceramic
6.  Be matched with amplifiers, 0-10v or 4-20mA are available
7.  On-line tension measurement accurately

Applications:

1. On-line measurement of cables, fibers, wires, metal wires and other products for online continuous tension measurement
2. Paper making, chemical industry, textile, packaging and other industries

Description:

TR is an online precise tension sensor with a measuring range from 0.1kg to 50kg. It adopts a three-roller structure. The material of the rollers is optional. It is made of hard anodized aluminum alloy, chrome-plated alloy steel, plastic, ceramics, etc., with high measurement accuracy. Small structure, easy installation, good stability, 1.5mV/V linear voltage signal output (can be connected with a transmitter to obtain 0-10V or 4-20mA output), suitable for various optical fibers, yarns, chemical fibers, etc. Tension measurement; widely used in electronics, chemical industry, textile, paper-making, machinery and industrial automation measurement and control fields.

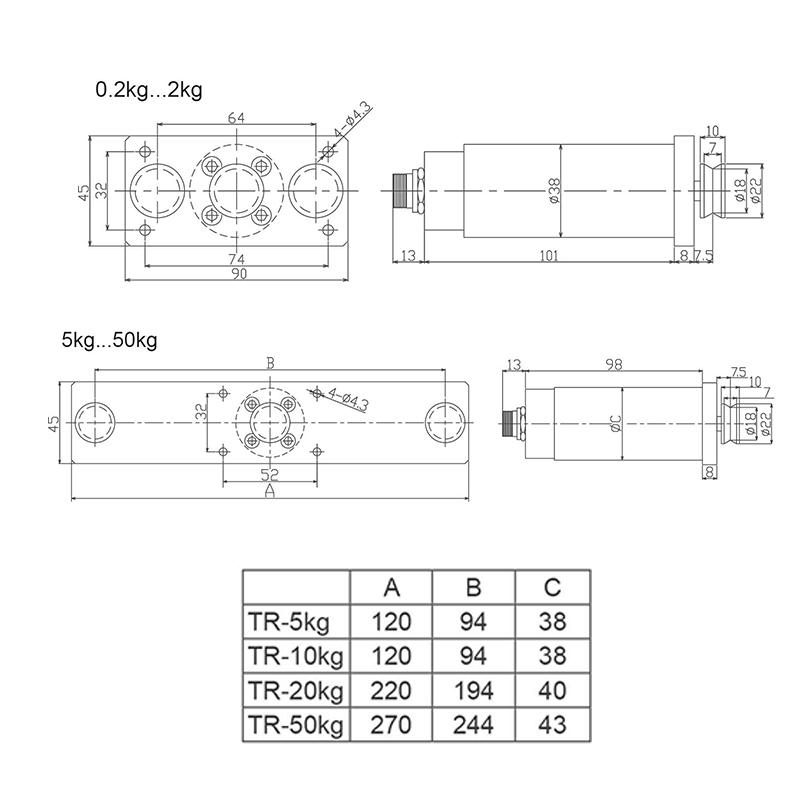

Dimensions:

Parameters:
