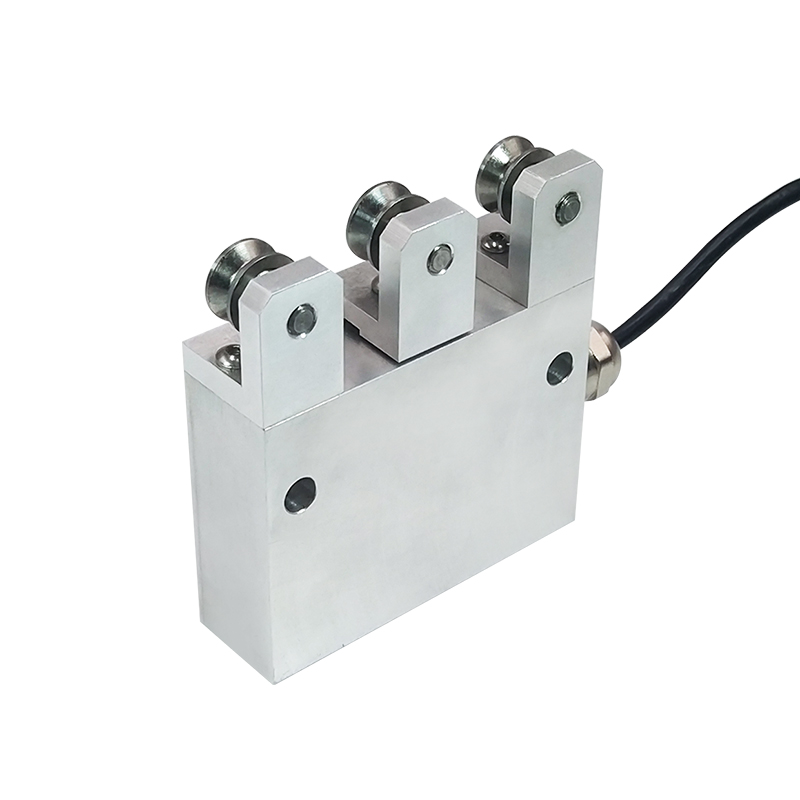

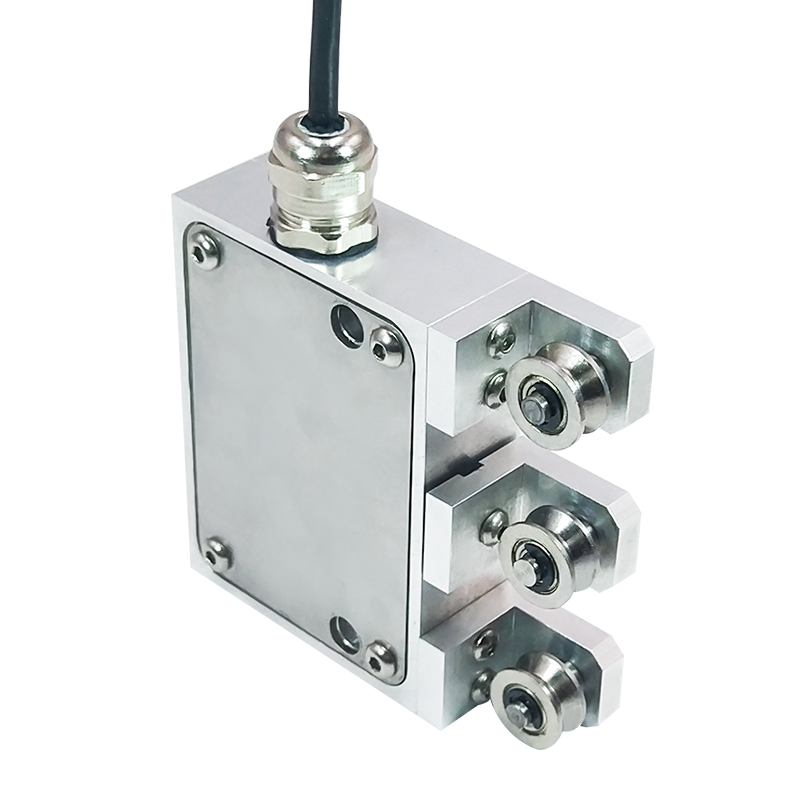

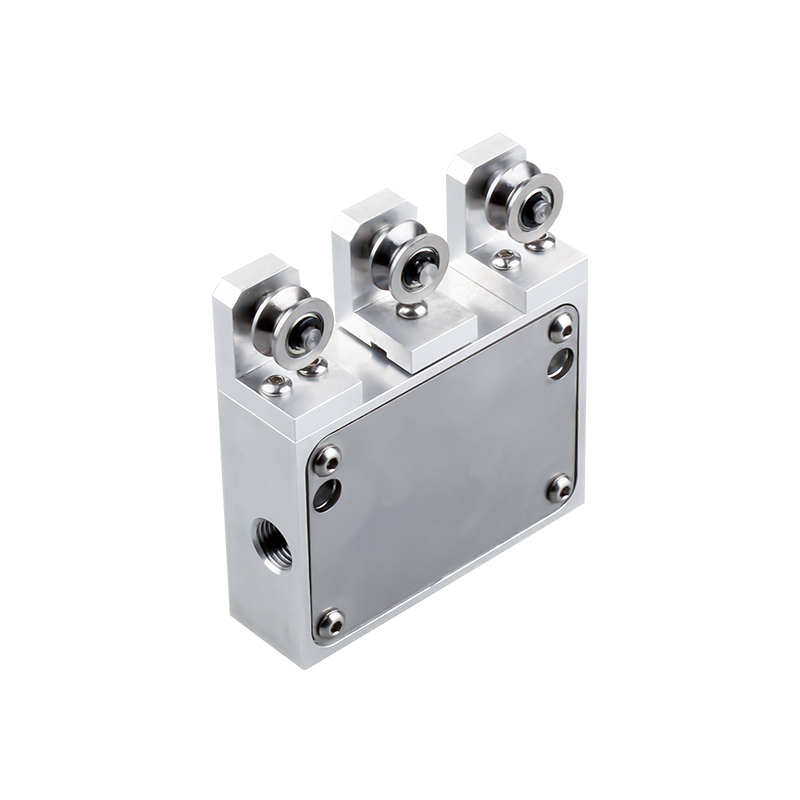

TS Three-Roller Continuous Tension Sensor
Short Description:
This sensor has an aluminum body and a three-roller mechanism. It allows for reliable tension measurement in online production lines. It supports fiber, wire, and metal wire applications, with capacities ranging from 0.5 kg to 3 kg.
Features:
- Capacities (kg): 0.5 to 3
- Resistance strain measurement methods
- Compact structure, save the space
- Three-roller measuring structure can realize the real-time monitoring of dynamic tension
- It can arrange in parallel, forming a tension detection array
Applications:
- On-line rope tension measurement
- On-line continuous tension measurement of fiber, wire, metal wire and other products
Description:
TS tension sensor, resistance strain measurement principle, measuring range from 0.5kg to 3kg, compact shape design, saving installation space; three-roller measuring structure can realize real-time monitoring of dynamic tension, and can be installed in parallel to form a tension detection array; It is used for online continuous tension measurement of fibers, wires, metal wires, etc. and similar products.

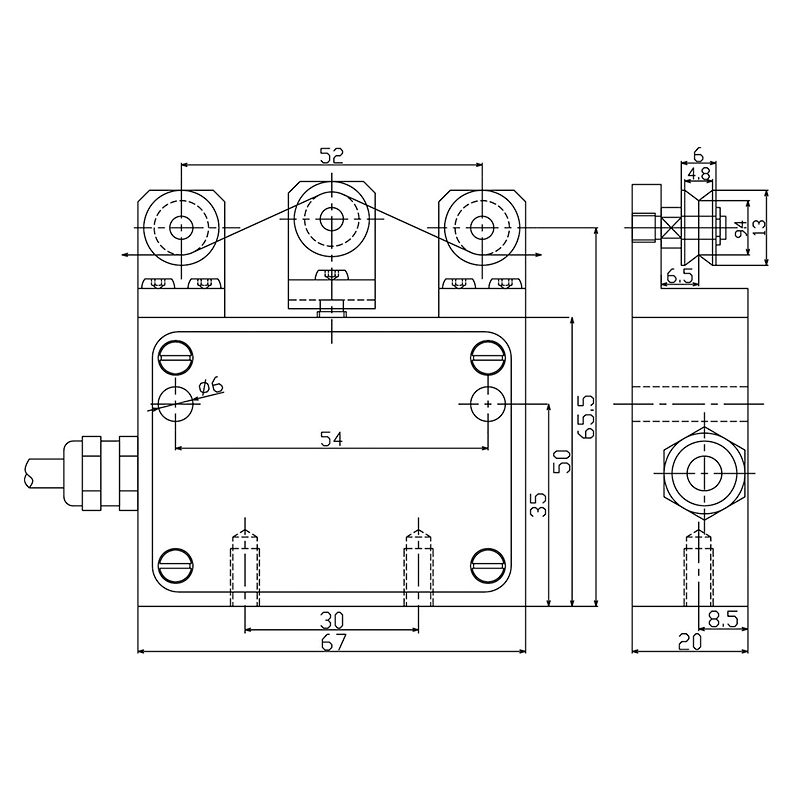

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 0.5,1,2,3 |
| Rated Output | mV/V | 1 |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.3 |
| Repeatability | %R.O. | ±0.1 |
| Non-linearity | %R.O. | ±0.3 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 15 |
| Input impedance | Ω | 350±5 |
| Output impedance | Ω | 350±3 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Material | Aluminum | |
| The length of the cable | m | 3 |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
| Shield: | Bare | |
Product specifications are subject to change without notice.
