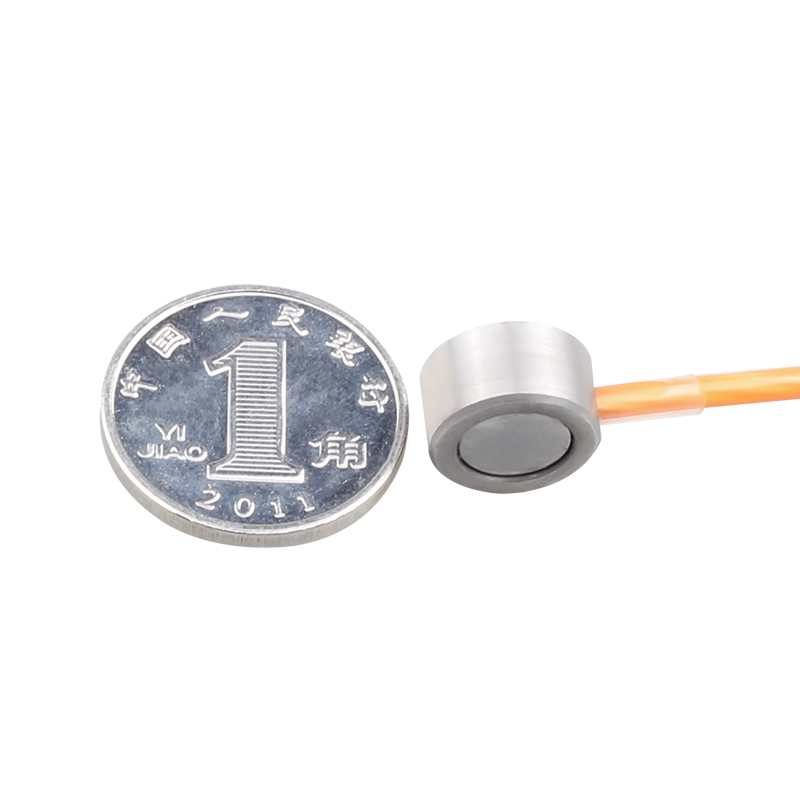

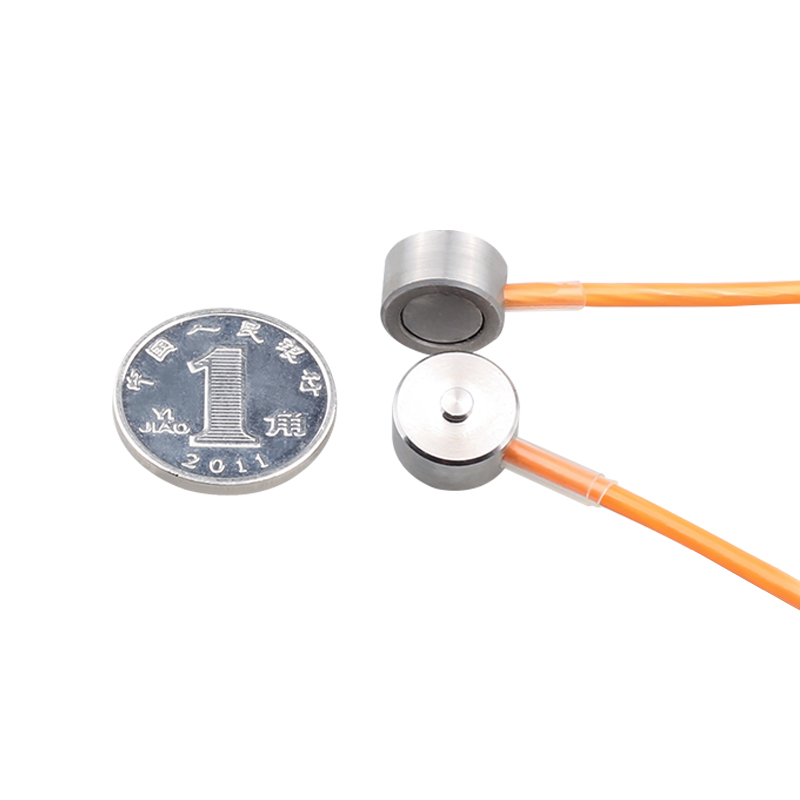

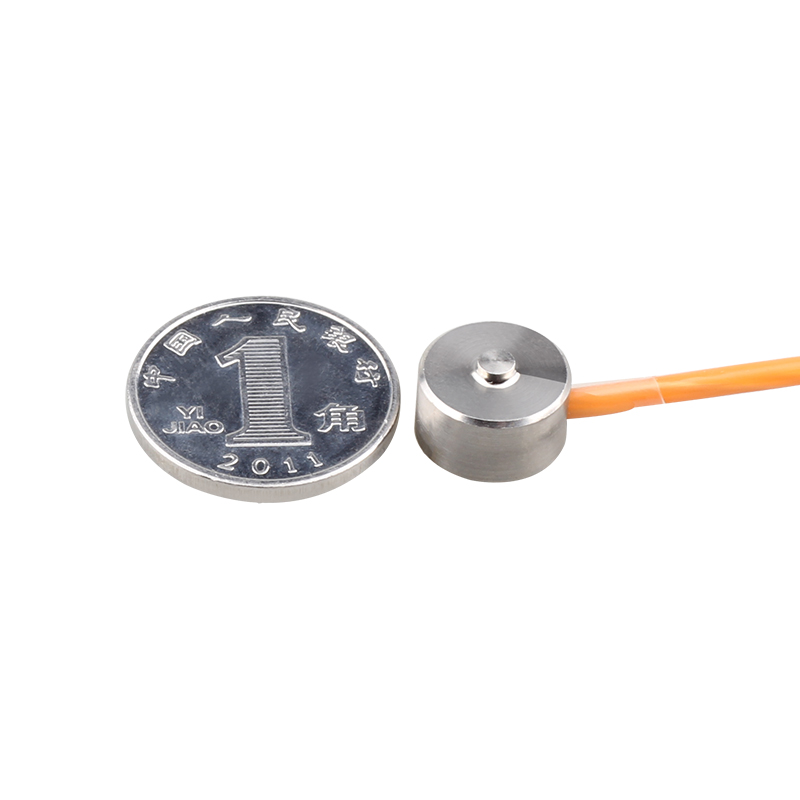

UM Column-Type Micro Compression Force Transducer
Short Description:
The UM Column-Type Micro Compression Force Transducer is a compact load cell. It’s made of stainless steel. Labirinth produces it. It has IP65 protection. It’s made for precise compression force measurement in tight spaces. The weighing capacity ranges from 2 kg to 1000 kg.
Features:
- Capacities (kg): 2 to1000
- Force Transducer
- Compact structure, easy mounting
- Delicate structure, low profile
- Stainless steel material, corrosion resistance
- Degree of protection reaches to IP65, High quality silica gel
- High comprehensive precision, high stability
- Compression sensor
Applications:
- Suitable for force control and measurement
- It can be installed inside the instrument to monitor the force of the working process
Description:
UM type is a miniature pressure sensor, made of stainless steel, which can be used normally in corrosive and humid environments. The measuring range ranges from 2kg to 1t. Into the inside of the instrument in order to monitor the force of the working process.

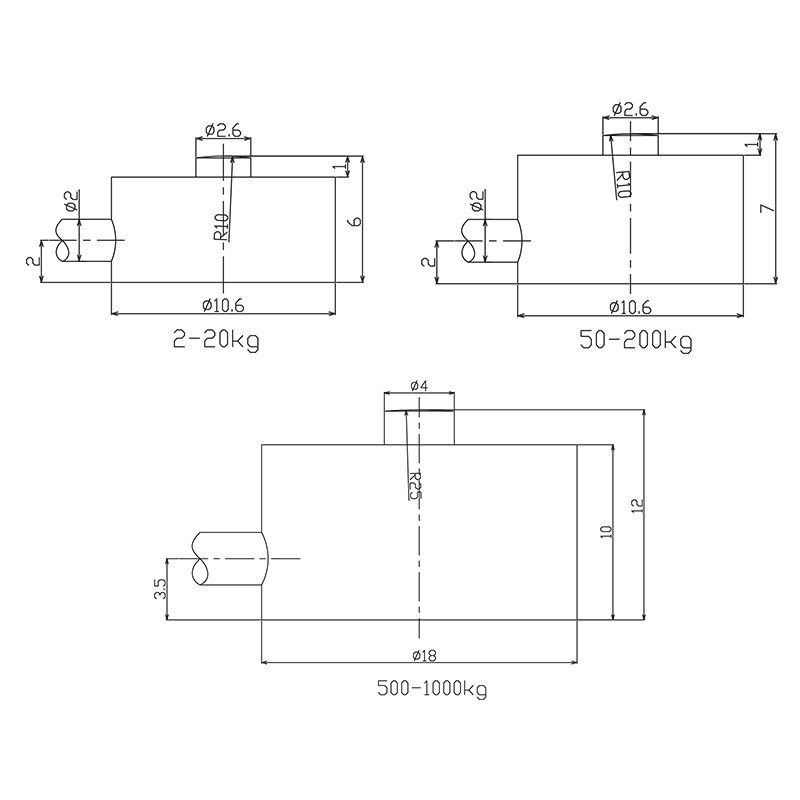

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 2,5,10,20,50,100,200,500,1000 |
| Rated Output | mV/V | 1.2~1.5 |
| Zero Output | %F.S. | ±2 |
| Comprehensive Error | %F.S. | ±0.5 |
| Recommended Excitation Voltage | VDC | 3-5 |
| Maximun Voltage | VDC | 5 |
| Input impedance | Ω | 350±5 |
| Output impedance | Ω | 350±3 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Stainless Steel | |
| Degree of protection | IP65 | |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
| Shield: | Bare | |
