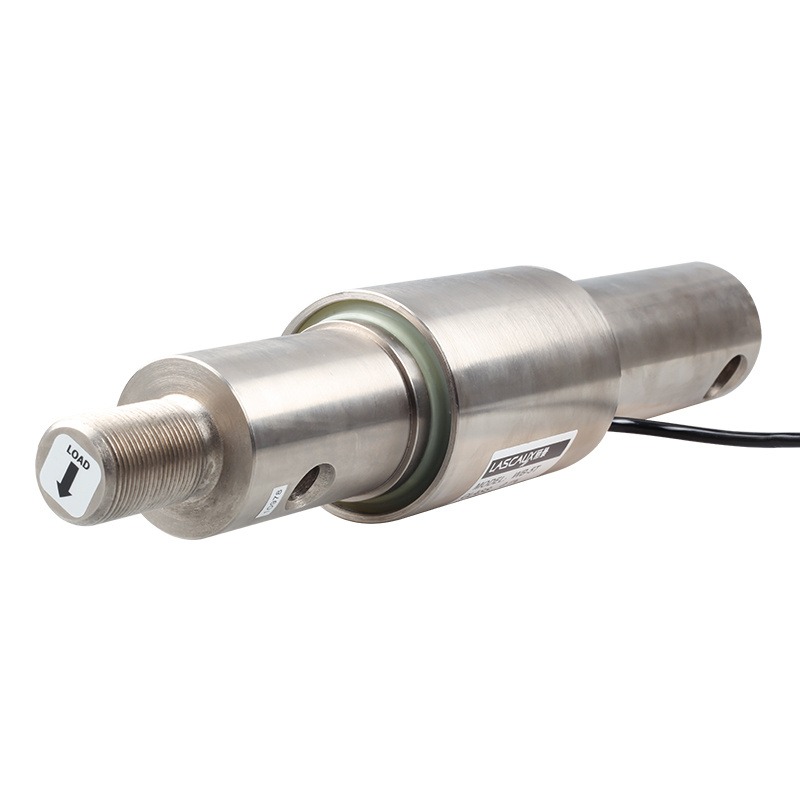

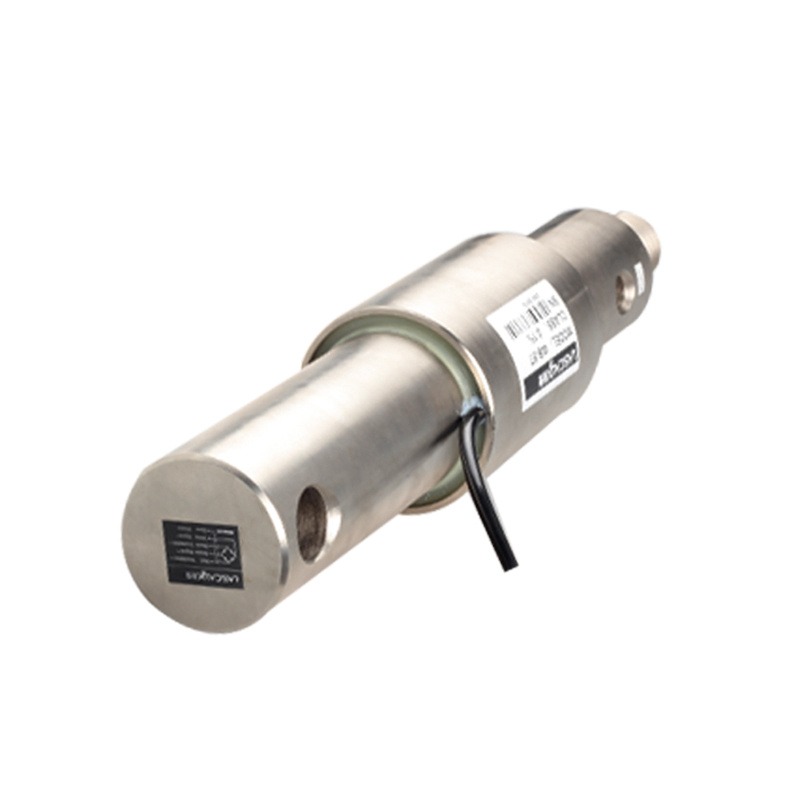

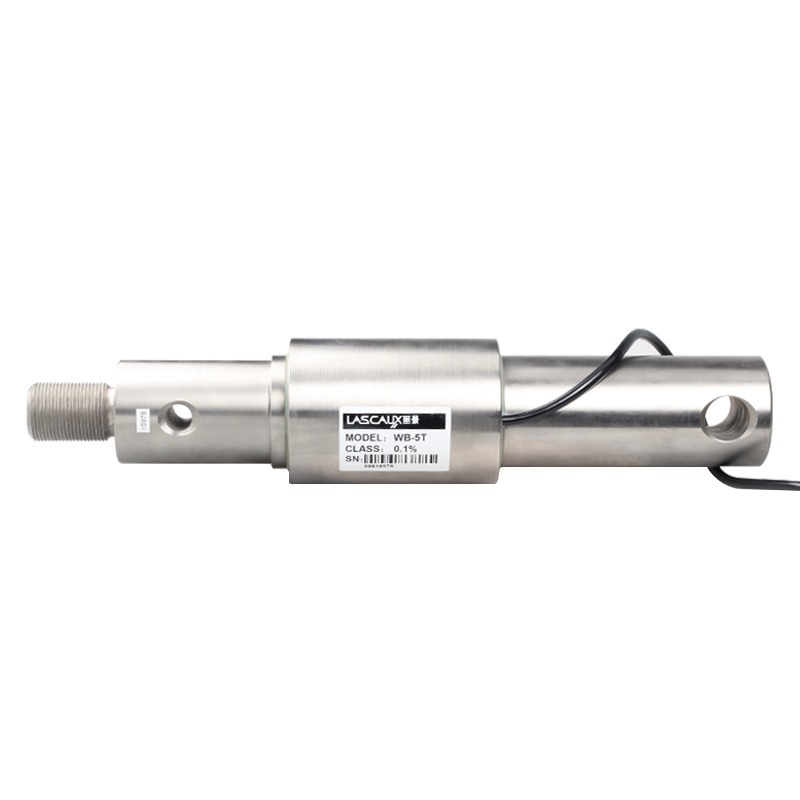

WB Traction-Type Load Cell for TMR Fodder Mixer Feed Processing Wagon Machine
Short Description:
Labirinth manufactures the WB traction-type custom load cell from stainless steel. It also has IP67 protection. The design is for fodder mixer TMR feed processing wagon machines. It can weigh up to 5 tons.
Features：
1. Capacities (t): 5
2. Compact structure, easy to install
3. The rated output is very low, Traction type
4. High comprehensive precision, high stability
5. High quality alloy steel with nickel plating
6. Alloy steel or Stainless steel material
7. It is mainly used for Total Mixed Ration feed mixer, tension TMR
Applications：
Precision is important at our agricultural feed plant. That’s why we use Mixer TMR Feed load cells and a smart feed mixer weight system to make sure that each batch we mix is maximally balanced. When mixing corn, silage or supplements, our Mixer Feed load cells ensure accurate weights and consistent feed quality. As an experienced farmer just knows the right balance by feel, our system “perceives for” us—reducing waste, saving time and providing the exact nutrition that livestock need. Precision is the foundation of trust in today’s feed industry. And that accuracy begins with Mixer Feed loadcells.
Product Description：
The WB cantilever beam load cell, with a measuring range of 5t, is made of 40CrNiMoA alloy steel. The band A indicates that it is a high-grade high-quality steel. The impurity content of this material is lower than that of 40CrNiMo. Usually more than one is used, and it is mainly used for weighing ingredients of TMR full-mix ration feed mixer truck. The difference from SSB is that the two move in different ways. WB is used on traction feed mixers, and SSB is used on stationary feed mixers.

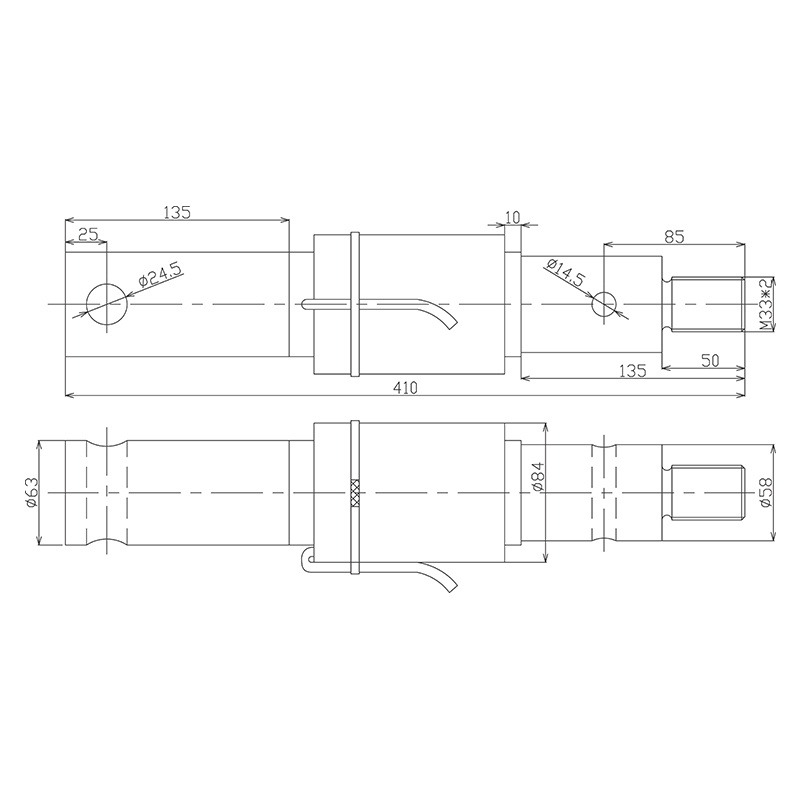

Dimensions：
Parameters：
| Specification | ||
| Rated load | 5 | t |
| Rated output | 0.6 | mV/V |
| Zero balance | ±1 | %R.O. |
| Comprehensive Error | ±0.1 | %R.O. |
| Creep(after 30 minutes) | ±0.1 | %R.O. |
| non-linearity | ±0.1 | %R.O. |
| Hysteresis | ±0.1 | %R.O. |
| Repeatability | ±0.05 | %R.O. |
| Normal operating temperature range | -10~+40 | ℃ |
| Allowable operating temperature range | -20~+70 | ℃ |
| Effect of temperature on zero point | ±0.02 | %R.O./10℃ |
| Effect of temperature on sensitivity | ±0.02 | %R.O./10℃ |
| Recommended excitation voltage | 5-12 | VDC |
| Input impedance | 380±10 | Ω |
| Output impedance | 350±5 | Ω |
| Insulation Resistance | ≥5000(50VDC) | MΩ |
| Safe overload | 150 | %R.C. |
| Limit overload | 300 | %R.C. |
| Material | Alloy Steel | |
| Protection Class | IP66 | |
| Cable length | 5 | m |
Product specifications are subject to change without notice.
