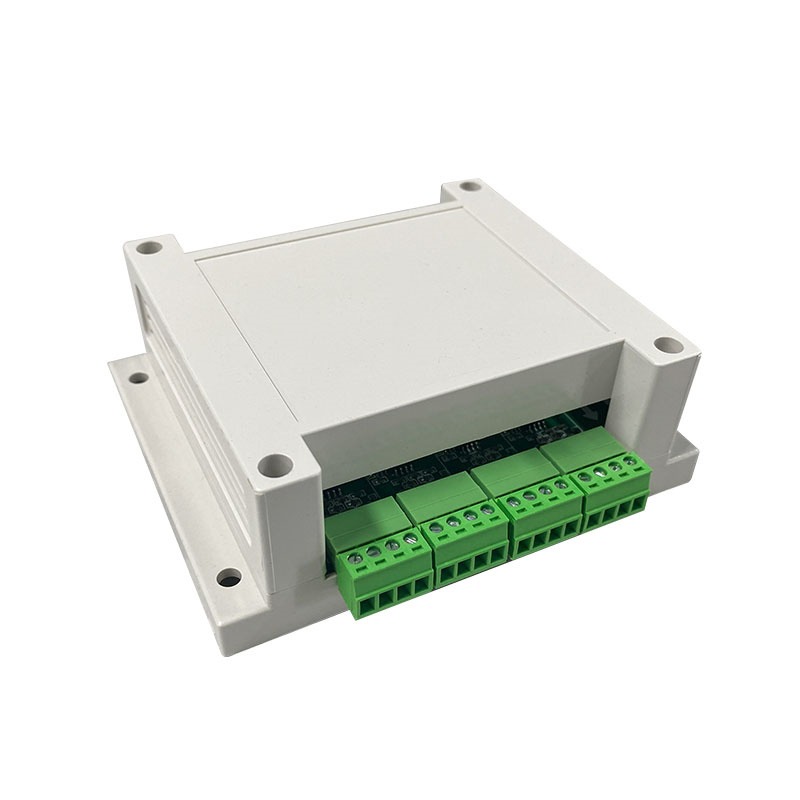

WD200-4 Digital Transmitter for Strain Load Cells
Short Description:
WD200-4 digital transmitter module is suitable for all resistance strain load cells, widely used in industrial weighing and force measurement systems.
Features：
1. Small size, easy to operate
2. Be suitable for all resistance strain sensors
3. Can be connected to 1~8 sensors
4. WD200-4 can be connected to four sensors at most
5. WD200-8 can be connected to eight sensors at most
6. RS485 or RS232 communication port
Description：
WD200-4 digital transmitter module is suitable for all resistance strain load cells.

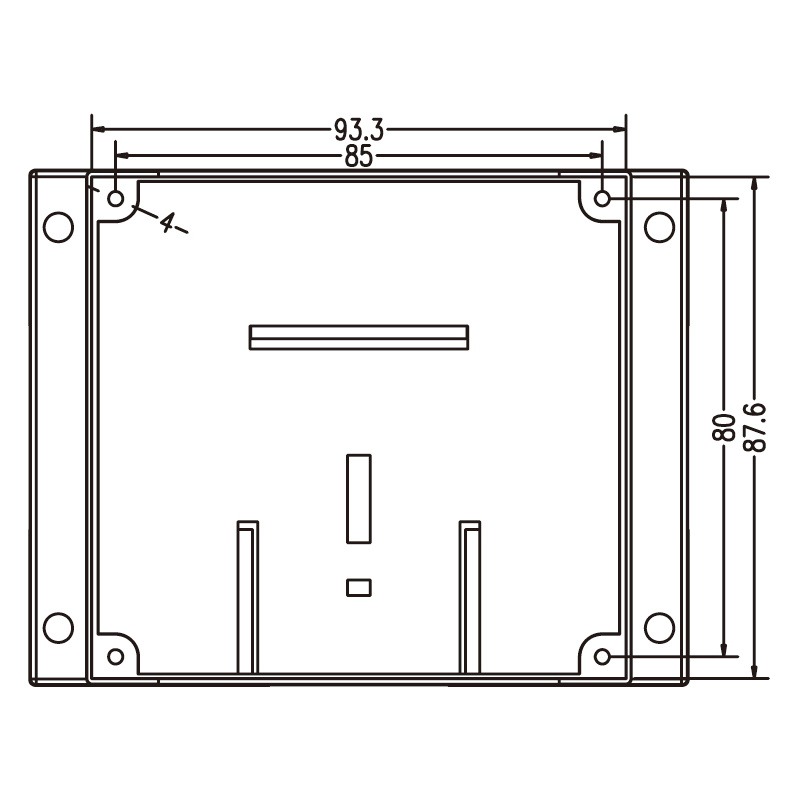

Dimensions：

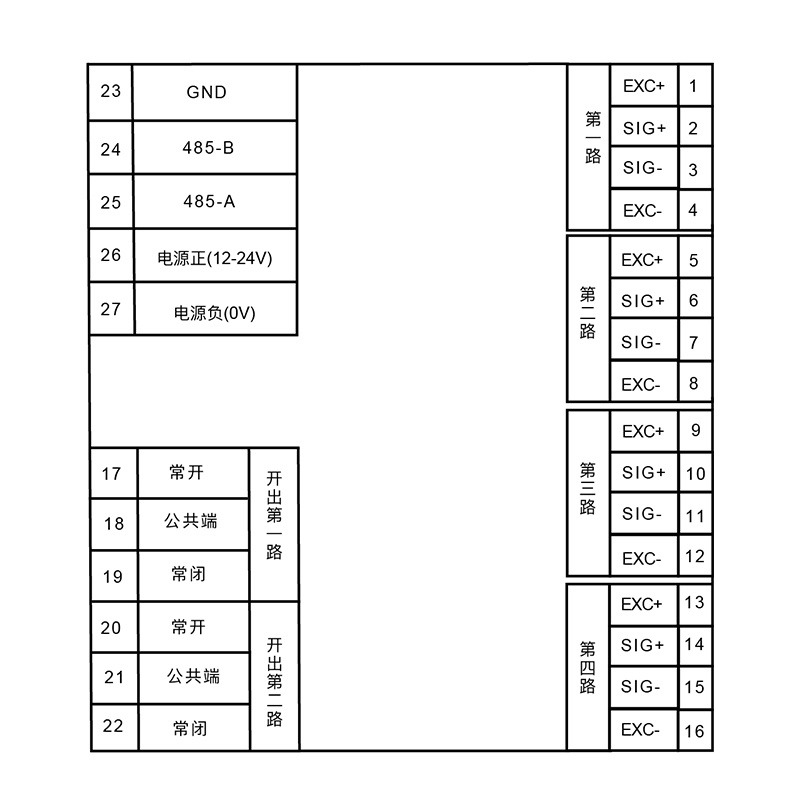

Installation：
Parameters：
| Specifications： | |
| Power Supply | DC 12-24V |
| Working temperature | -10℃-40℃ |
| Humidity | 90%RH(No condensation) |
| Load cell excitation | DC 5v |
| Consumption power | MAX 10W |
| Communication protocol | Modbus RTU and self-defined protocol |
| Communication port | RS485 or RS232 |
| Physical dimension(mm) | 92*87（WD200-4） 122*87(WD200-8) |
