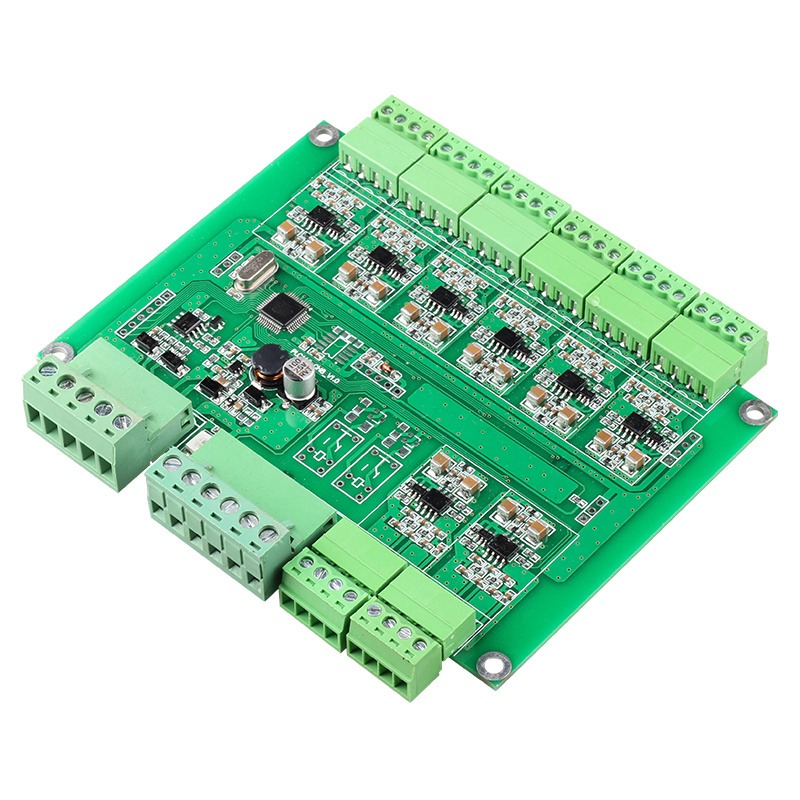

WD200-8 Compact 8-Channel Digital Transmitter PCB for Load Cells
Short Description:
WD200-8 is a small-size, easy-to-operate digital transmitter module that connects up to 8 resistance strain sensors for industrial weighing and measurement applications.
Payment: T/T, L/C, PayPal
Features：
1. Small size, easy to operate
2. Be suitable for all resistance strain sensors
3. Can be connected to 1~8 sensors
4. WD200-4 can be connected to four sensors at most
5. WD200-8 can be connected to eight sensors at most
6. RS485 or RS232 communication port
Dimensions：

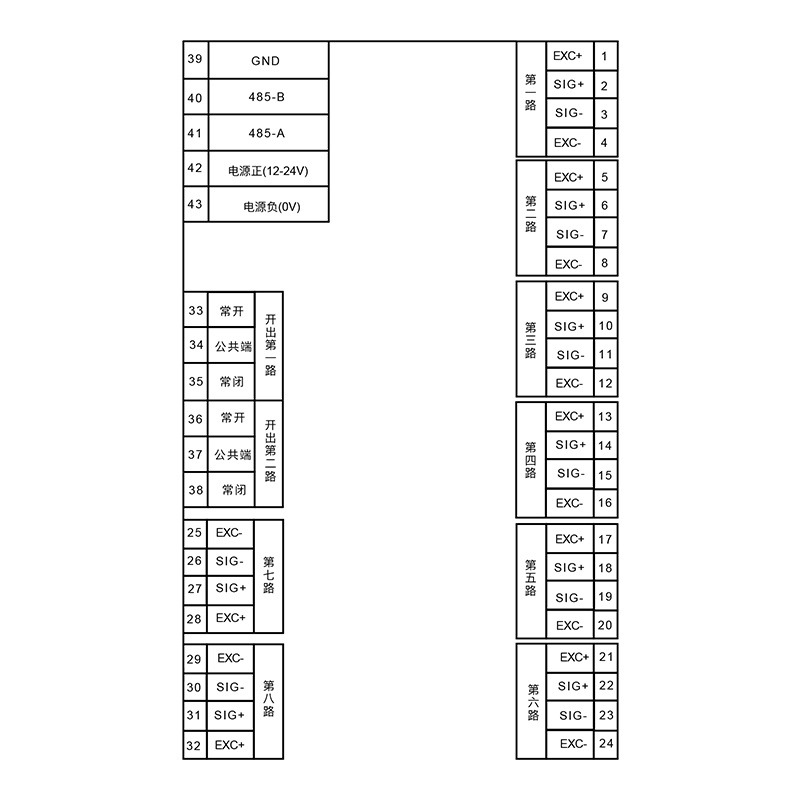

Installation：
Parameters：
| Specifications: | |
| Power Supply | DC12-24V |
| Working temperature | -10℃-40℃ |
| Humidity | 90%RH(No condensation) |
| Load cell excitation | DC 5v |
| Consumption power | MAX10W |
| Communication protocol | Modbus RTU and self-defined protocol |
| Communication port | RS485 or RS232 |
| Physical dimension(mm) | 92*87（WD200-4）122*87(WD200-8) |
