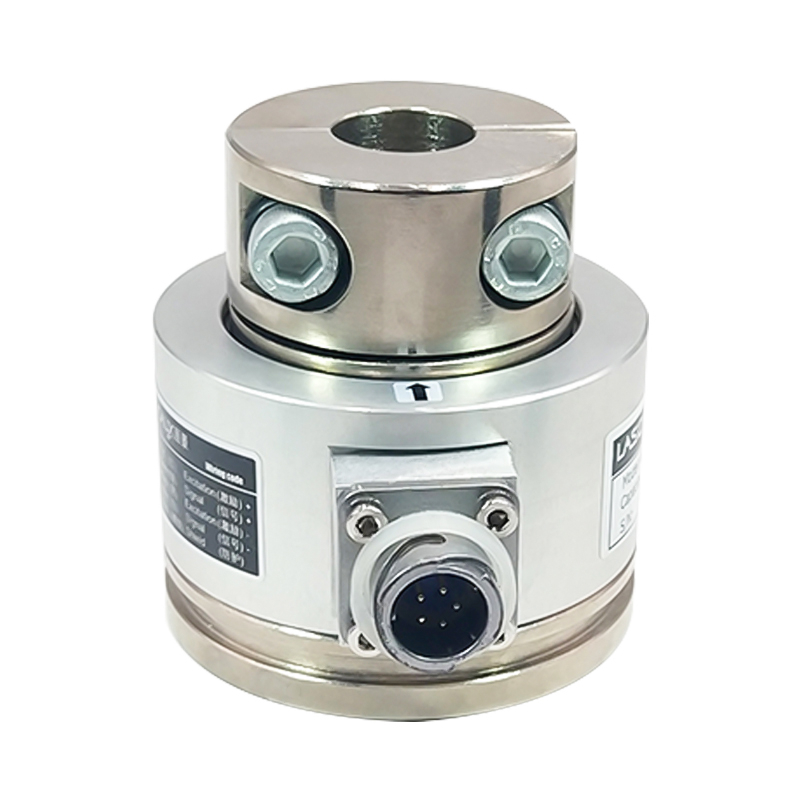

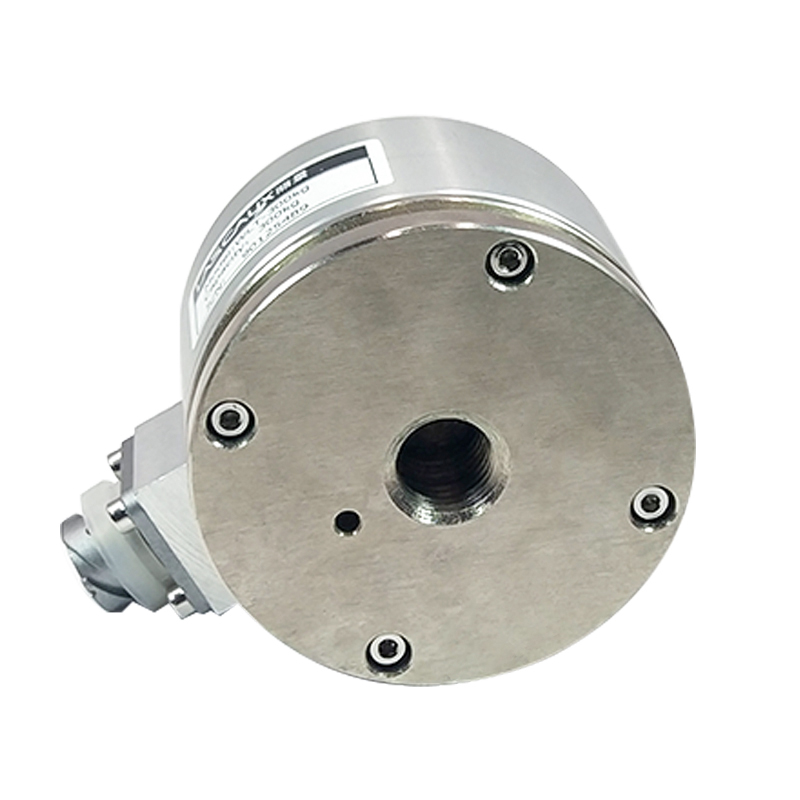

WLT Tension Sensor for Textile, Printing and Packaging Machinery
WLT Tension Sensor for Textile, Printing and Packaging Machinery
WLT Tension Sensor for Textile, Printing and Packaging Machinery

WLT Tension Sensor for Textile, Printing and Packaging Machinery

Short Description:

This manufacturer makes this tension sensor from aluminum alloy. It has an IP66 rating. This ensures reliable and stable force measurement in production settings. It’s made for textile machines, printing systems, and packaging equipment. It measures tension from 5 kg to 100 kg, covering the needs of different industrial processes.

Features:

  1. Capacities (kg): 5 to 100
  2. Resistance strain measurement methods
  3. Degree of protection can reach to IP66
  4. It can accurately measure in the low tension
  5. Compact structure, save the space, easy to install
  6. High comprehensive precision, high stability
  7. High quality alloy steel with nickel plating
  8. Stainless steel material is available
  9. Many installations types can satisfy various needs

Applications:

  1. Textile machinery
  2. Printing and packaging
  3. paper plastic
  4. Wire and cable
  5. Meet the tension testing needs of various industries

Description:

WLT tension sensor, cantilever structure, measuring range from 5kg to 100kg, made of alloy steel, nickel-plated surface, single use, can be connected to the transmitter, can measure accurately even under low tension conditions, multiple installation methods , can meet various installation requirements, used for tension measurement, detection objects include metal wires, wires, cables, for example, can be used to measure the tension of plastic film or tape used for winding on mechanical guide rollers.

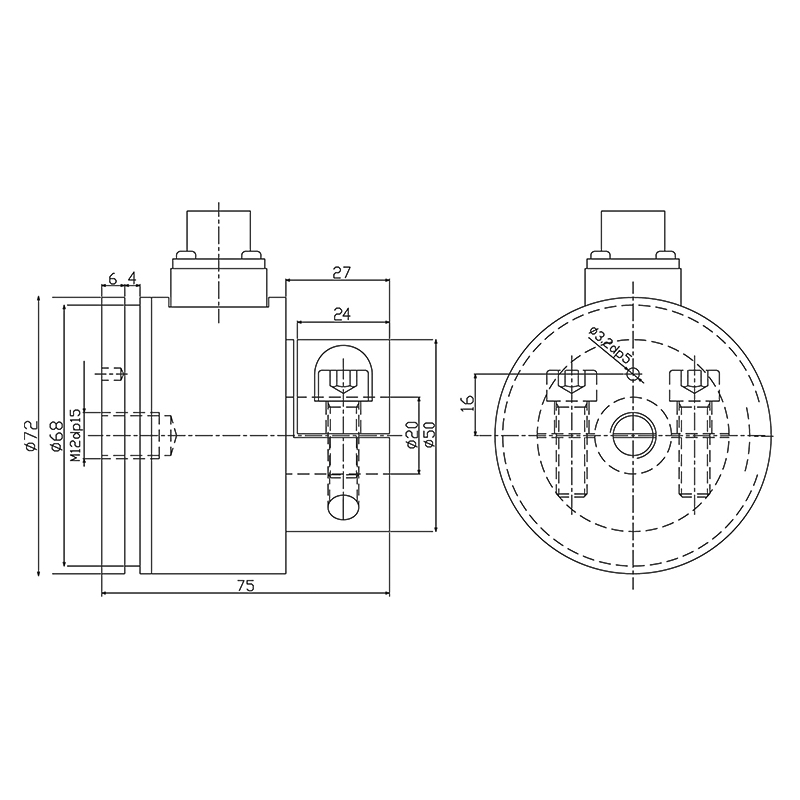

Dimensions:

WLT Tension Sensor for Textile, Printing and Packaging Machinery

Parameters:

Specifications:
Rated Load kg 5,10,25,50,100
Rated Output mV/V 1
Zero Balance %R.O. ±1
Comprehensive Error %R.O. ±0.3
Compensated Temp. Range ‌℃ -10~+40
Operating Temp. Range ‌℃ -20~+70
Temp. effect/10℃ on output %R.O./10 ℃ ±0.01
Temp. effect/10℃ on zero %R.O./10 ℃ ±0.01
Recommended Excitation Voltage VDC 5-12/15(max)
Input impedance Ω 380±10
Output impedance Ω 350±5
Insulation resistance MΩ ≥5000（50VDC）
Safe Overload %R.C. 150
Ultimate Overload %R.C. 300
Material Alloy Steel or Aluminum
Degree of protection IP66
The length of the cable m 3
Wiring code Ex: Red：＋ Black：–
Sig: Green：＋ White：–
Shield: Bare
