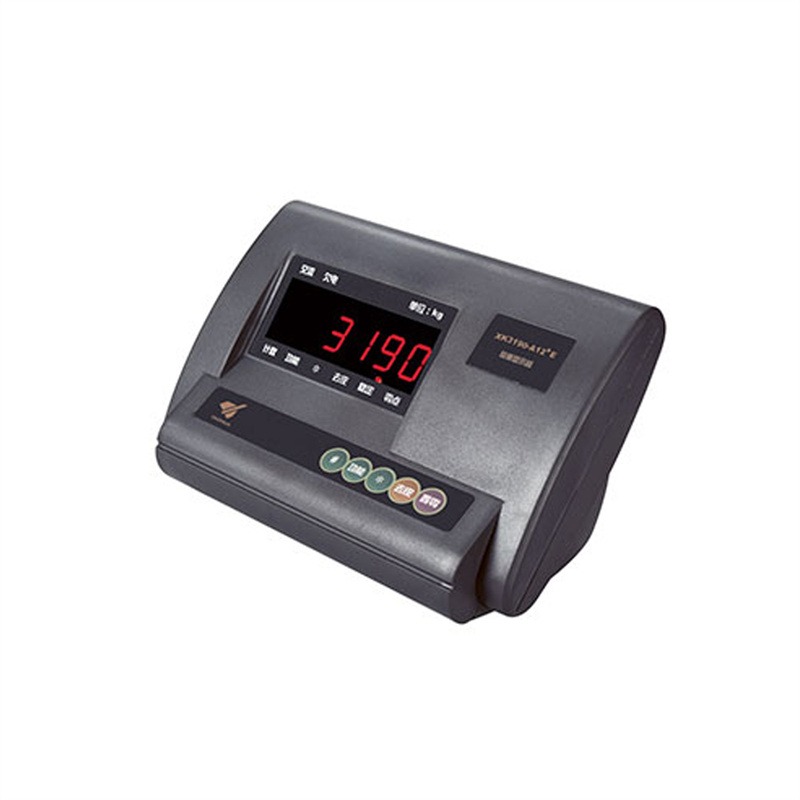

XK3190-A12+E Digital Weighing Indicator for Electronic Platform & Floor Scales
Short Description:
XK3190-A12+ is a plastic housing weighing indicator. It offers high-precision A/D conversion and advanced anti-vibration tech. It works with both AC and DC power. This unit manufacturers electronic platform scales and static weighing systems that use 1 to 4 load cells.
Features：
1. XK3190-A12+ series adopts high-precision analog-to-digital conversion technology and special software anti-vibration technology
2. AC and DC
3. Suitable for electronic platform scales, electronic platform scales and other static weighing systems using 1 to 4 sensors
4. High-precision A/D conversion, readability up to 1/30000
5. It is convenient to call the internal code and display it, and it can replace the sense weight to observe and analyze the tolerance
6. Special software technology enhances the anti-vibration ability of the system
7. Zero tracking range, zero setting (power on/manual) range, can be set separately
8. The speed, amplitude and stabilization time of digital filtering can be set
9. With weighing and counting function; (single weight has power-off protection)
10. Various backlight modes can be selected
11. Can be recharged randomly
12. With under voltage indication and protection device
13. Random configuration 6V/4AH maintenance-free battery
Product Description：
XK3190-A12+ series adopts high-precision analog-to-digital conversion technology and special software anti-vibration technology, AC and DC dual-purpose, suitable for electronic platform scales, electronic platform scales and other static weighing systems using 1 to 4 sensors.

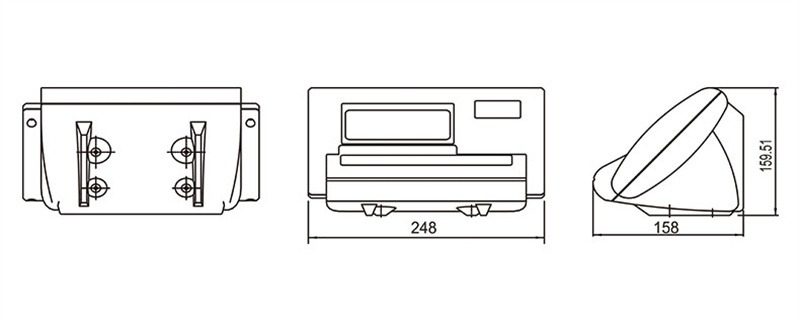

Dimensions：
Parameters:
| Specifications: | |
| Accuracy | class 3,n=3000 |
| Sampling speed | 10 times/second |
| Sensor sensitivity range | (1.5~3)mV /V |
| Graduation value | 1/2/5/10/20/50 optional |
| Display | 6-digit LCD/LED,6 status indicators |
| Large-screen display(optional) | Serial output mode,current loop signal,transmission distance = 2000 meters |
| Communication (optional) | RS232C;baud rate 1200/2400/4800/9600 optional |
| Power supply | maintenance-free lead-acid battery DC6V/4Ah |
| Operating temperature | 0℃~40℃ |
| Storage and transportation temperature | -25℃~55℃ |
| Humidity | >85%RH |
