XK3190-A23P Weighing With Printing Function Weighing Display Controller

Short Description:

Payment: T/T, L/C, PayPal

Features:

1. XK3190-A23P is a three-window liquid crystal display pricing meter
2. Built-in micro-printer
3. It is suitable for static weighing systems using 1 to 4 sensors such as electronic platform scales, electronic platform scales, and electronic ground scales
4. With standard pricing function
5. Standard built-in needle micro printer
6. 100 sets of unit prices can be stored, and 100 sets of unit prices can be recalled
7. With cumulative function, it can display and clear cumulatively, and you can choose to print details and cumulative documents
8. Query storage records by key
9. The printing content is optional, you can freely choose the items to be printed
10. Simple counting function, can be priced by quantity
11. Can store 1000 sets of weighing records, which can be queried and printed
12. Standard RS232 interface, optional communication format
13. Upper and lower limit alarm optional
14. KG/LB one-key switch optional

Product Description:

XK3190-A23P, XK3190-A23P is a three-window liquid crystal display price meter with a built-in micro-printer, suitable for static weighing systems using 1 to 4 sensors such as electronic platform scales, electronic platform scales, and electronic floor scales.

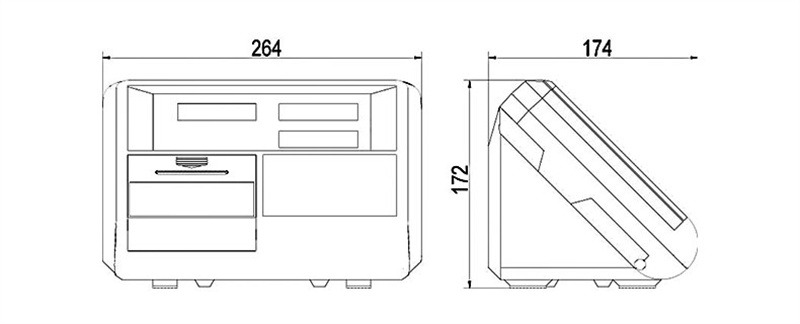

Dimensions:



XK3190-A23P Weighing With Printing Function Weighing Display Controller 2

XK3190-A23P Weighing With Printing Function Weighing Display Controller



Parameters:

Specifications:
Accuracy Class 3
A/D conversion principle ? -? type
A/D conversion resolution 1 million yards
A/D conversion speed 10 times/second
Sensor excitation voltage DC 5V
Signal 1 sensor (four-wire system)
Input signal range -16mV ~ 18mV
Display 6+6+6 digit LCD,6 status indicators,3 levels of battery power
Keyboard 4×6 membrane keys
AC power supply AC220V/50Hz
DC power supply Built-in maintenance-free 6V/5AH battery
Fuse 0.5A
Preheating time 15-30 minutes
Working temperature 0~40℃
Storage and transportation temperature -25℃~55℃
Dimensions 264×174×172(mm)
Self weight about 2.2kg
