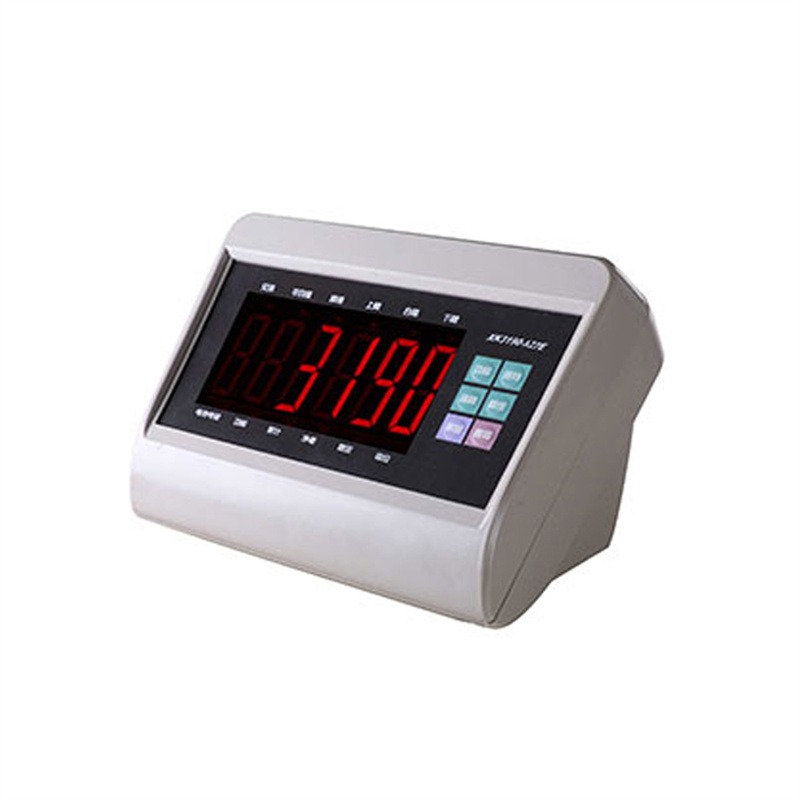

XK3190-A27E Digital Display for High-Accuracy Electronic Scales
Short Description:
The XK3190-A27E is a precise weighing display. It works with desk, platform, and floor scales. It provides accurate and reliable electronic measurements. It’s ideal for industrial, commercial, and lab settings. Precise weight monitoring is key here.
Features：
1. Single-window 2-inch special high-brightness LED large display, real “big eyes”
2. Peak hold and average value display function
3. Manual accumulation and automatic accumulation
4. Four-level power indicator, under voltage alarm and automatic shutdown function
5. Upper and lower limit alarm function, HIGH-OK-LOW status indication
6. Automatic sleep function
7. Preset tare weight
8. Automatic magnification function with 10 times precision
9. High-precision digital-to-analog conversion technology, readability up to 1/30000
10. Random configuration of 6V/4AH maintenance-free battery, which can be charged randomly
11. Optional RS-232C communication port, optional baud rate
12. Optional large screen communication port, 20mA current loop connection mode
13. Suitable for electronic desk Scales, electronic platform scales, electronic ground scales which use 1 to 4 static weighing systems with 350Ω sensors.
Applications：
1. Electronic desk Scales
2. Electronic platform scales
3. Electronic ground scales
Product Description：
XK3190-A27E weighing instrument is suitable for static weighing systems using 1 to 4 350Ω sensors such as electronic platform scales, electronic platform scales, and electronic floor scales.

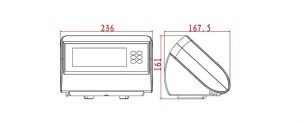

Dimensions：
Installation：
| Specifications: | |
| Accuracy | 3 |
| Maximum Verification Division | 3000 |
| Input signal range | 10 times / s |
| Nonlinearity | 0.000015 |
| Supply voltage | DC 5V |
| sensor connection | 1~4pcs 350Ω sensor |
| Division | 1/2/5/10/20/50 optional |
| Communication | RS232 serial,20mA current loop (constant current source) signal large screen |
| power supply | AC220V；50、60Hz (-2%~+2%) |
| Operating temperature | -10℃~40℃ |
| Storage temperature | -25℃~55℃ |
| large screen | Using serial output mode,current loop signal,transmission distance:=200 meters |
| Communication | RS232C mode,baud rate:600/1200/2400/4800/9600 optional Transmission distance:=30 meters |
