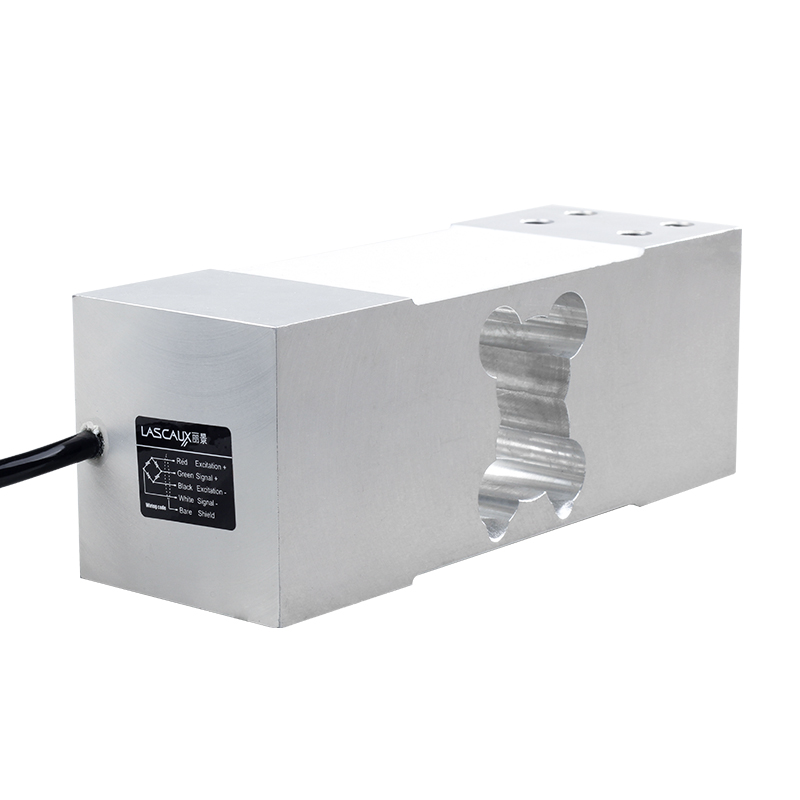

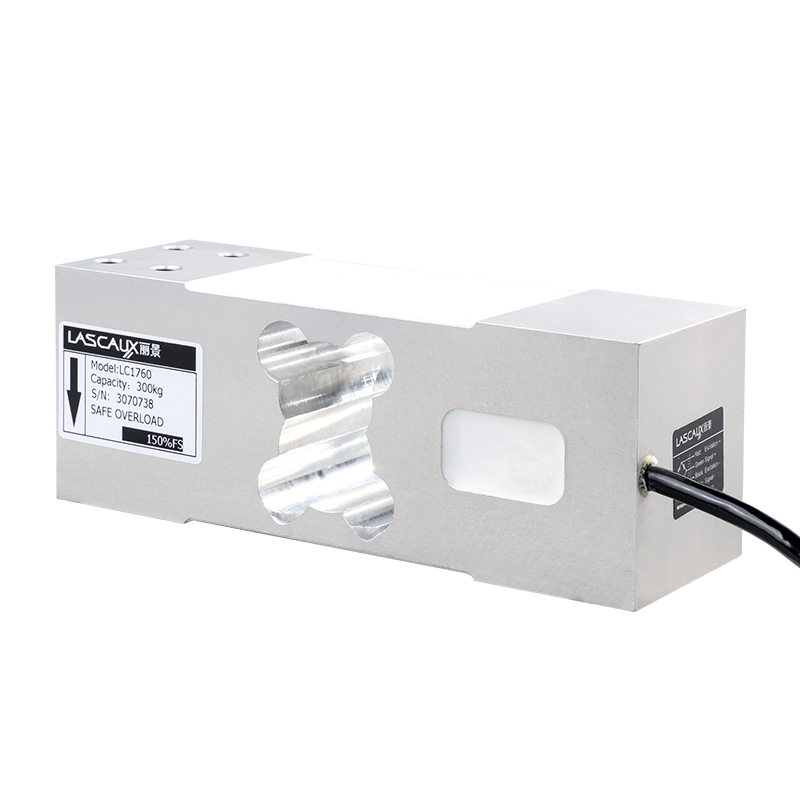

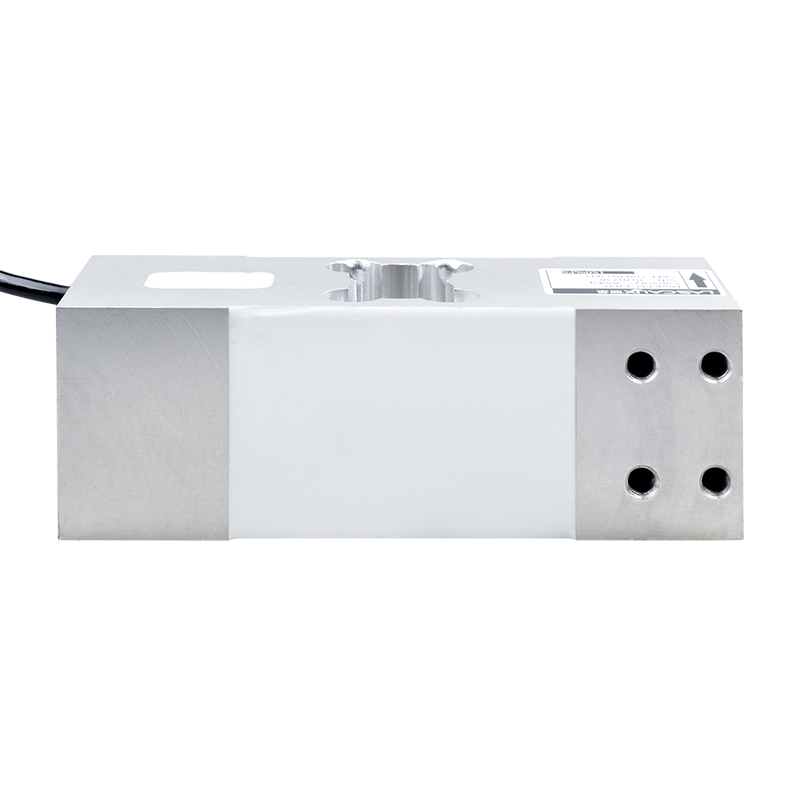

LC1760 Single Point Load Cell for Low Capacity Hopper Scales
Short Description:
The LC1760 single-point load cell from Labirinth load cell manufacturer is made of aluminum alloy with IP65 protection. Designed for low-capacity hopper scales, it offers a weighing capacity ranging from 50 kg to 750 kg.
Features:
1. Capacities (kg): 50 to 750
2. High comprehensive precision, high stability
3. Compact structure, easy to install
4. Small size with low profile
5. Anodized Aluminum Alloy
6. The four deviations has been adjusted
7. Recommended Platform size: 600mm*600mm
Applications:
1. Platform Scales
2. Packaging Scales
3. Dosing scales
4. Industries of food, Pharmaceuticals, industrial process weighing and control
Description:
LC1760 load cell is a high precision large range single point load cell, 50kg to 750kg, the material is made of high quality aluminum alloy, glue sealing process, providing aluminum alloy analog sensor, the deviation of the four corners has been adjusted to ensure the accuracy of measurement, and the surface is anodized, the degree of protection is IP66, and can be applied in a variety of complex environments. The recommended table size is 600mm*600mm, suitable for platform scales and industrial weighing systems.

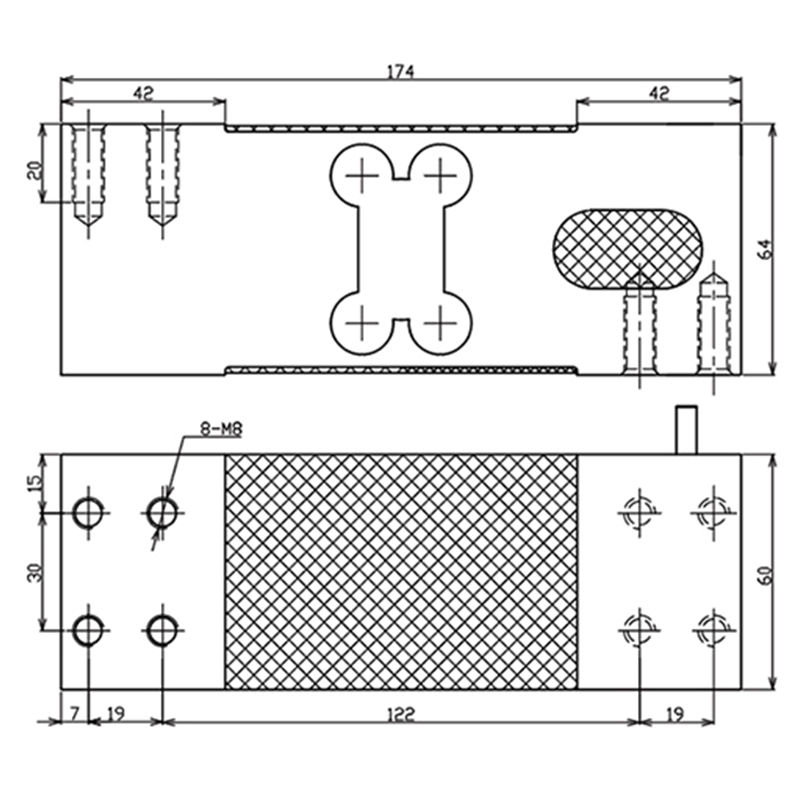

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 50,100,200,300,500,750 |
| Rated Output | mV/V | 2.0±0.2 |
| Zero Balance | %R.O. | ±1 |
| Creep after 30 minutes | %R.O. | ±0.02 |
| Comprehensive Error | %R.O. | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Input impedance | Ω | 410±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 3 |
| Recommended Platform size | mm | 600*600 |
| Tightening Torque | N·m | 50kg-200kg:25 N·m 300kg-750kg:30 N·m |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
