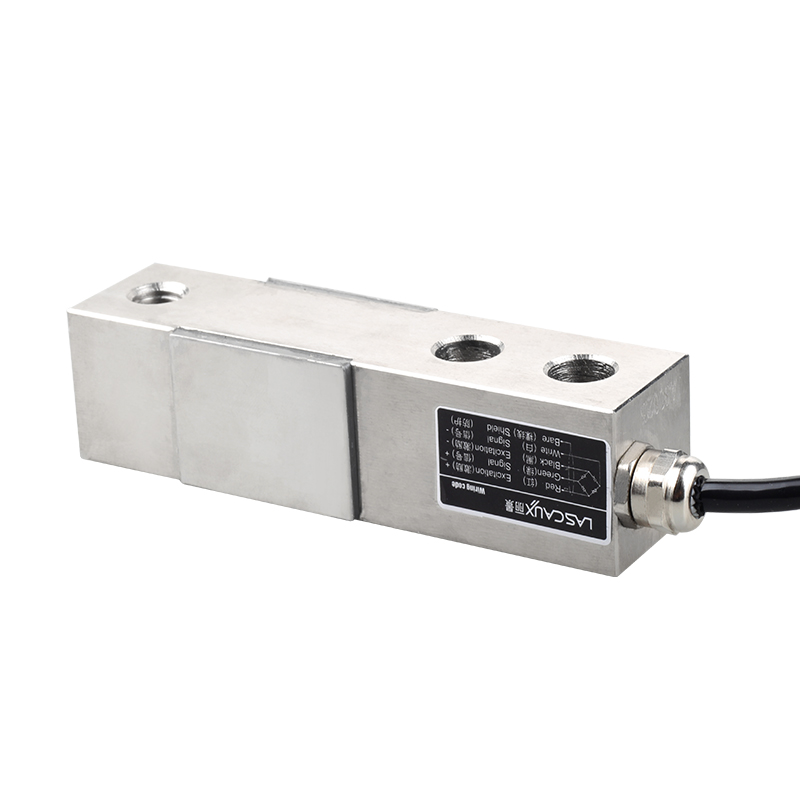

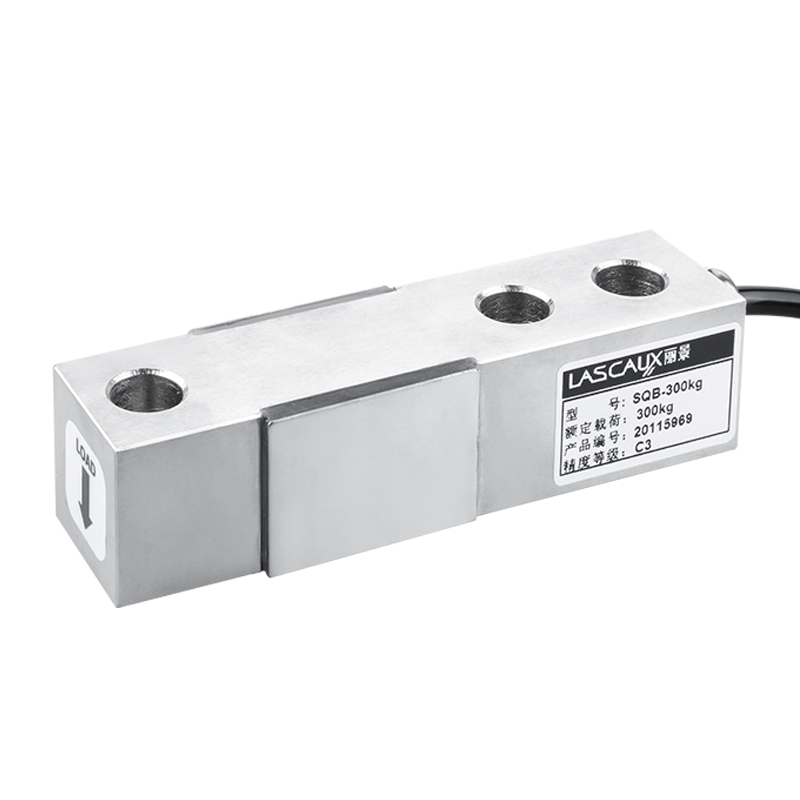

SQB Alloy Steel Shear Beam Load Cell for Tank & Floor Scales
Short Description:
Labirinth designed the SQB Shear Beam Load Cell for tank weighing and floor scales. Labirinth is a trusted load cell manufacturer. It’s made from strong alloy steel and has IP67 protection. This ensures stable and reliable performance, even in tough industrial settings. The rated capacity ranges from 250 kg to 10 tons.
Features:
- Capacities (t): 0.1 to 10
- Compact structure, easy to install
- High comprehensive precision, high stability
- High quality alloy steel with nickel plating
- Degree of protection reaches to IP67
- Module installing

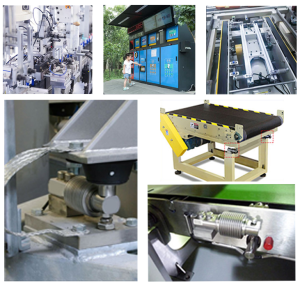

Applications:
SQB Weighing Scale can be applied to the following scenarios
- Floor scales, platform scales
- Belt scales, packaging scales, filling scales
- Hopper, tank weighing and process control
- Ingredient weighing control in chemical, food, pharmaceutical and other industries
Description:
The SQB cantilever beam load cell is made of 40CrNiMoA alloy steel, with A indicating that it is a high-grade high-quality steel. The impurity content of this material is lower than that of 40CrNiMo. It has good processability, small processing deformation, and good fatigue resistance. Wide measuring range, optional from 0.1t to 10t, compact structure, easy installation, one end is fixed, one end is loaded, multiple can be used, with corresponding installation accessories, it can be applied to small weighbridges or assembled into modules for use in material tanks and tanks Among other equipment, the ability to resist partial load is strong. This sensor can also be used in explosion-proof situations.

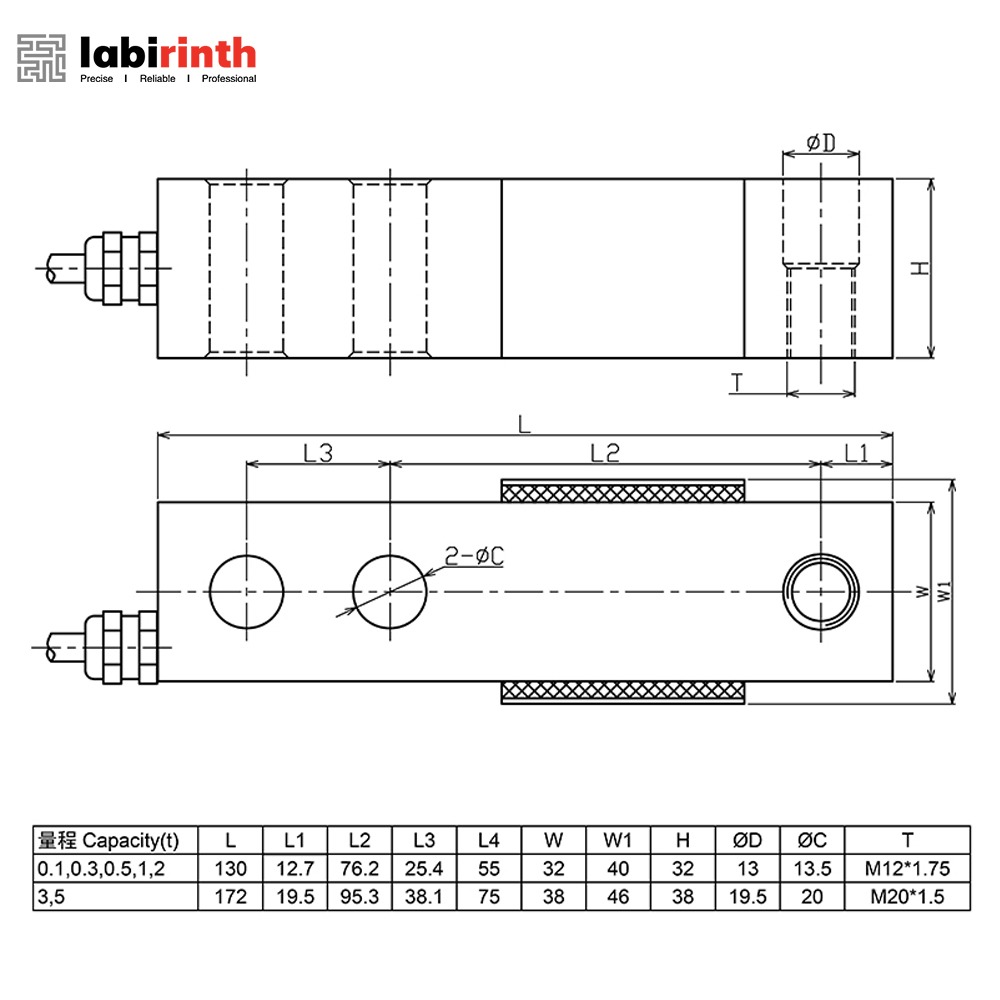

Parameters:
| Specifications: | ||
| Rated Load | t | 0.1, 0.3, 0.5, 1, 2, 3, 5 |
| Rated Output | mV/V | 2.0±0.0050 |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.02 |
| Non-linearity | %R.O. | ±0.02 |
| Hysteresis | %R.O. | ±0.02 |
| Repeatability | %R.O. | ±0.02 |
| Creep after 30 minutes | %R.O. | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 15 |
| Input impedance | Ω | 380±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Material | Alloy Steel | |
| Degree of protection | IP67 | |
| The length of the cable | m | 0.1-2t:3m 3t-5t:5m 7.5t-10t:6.5m |
| Tightening torque | N▪m | 0.1t-2t:98 N·m 3t-5t:275N·m |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
