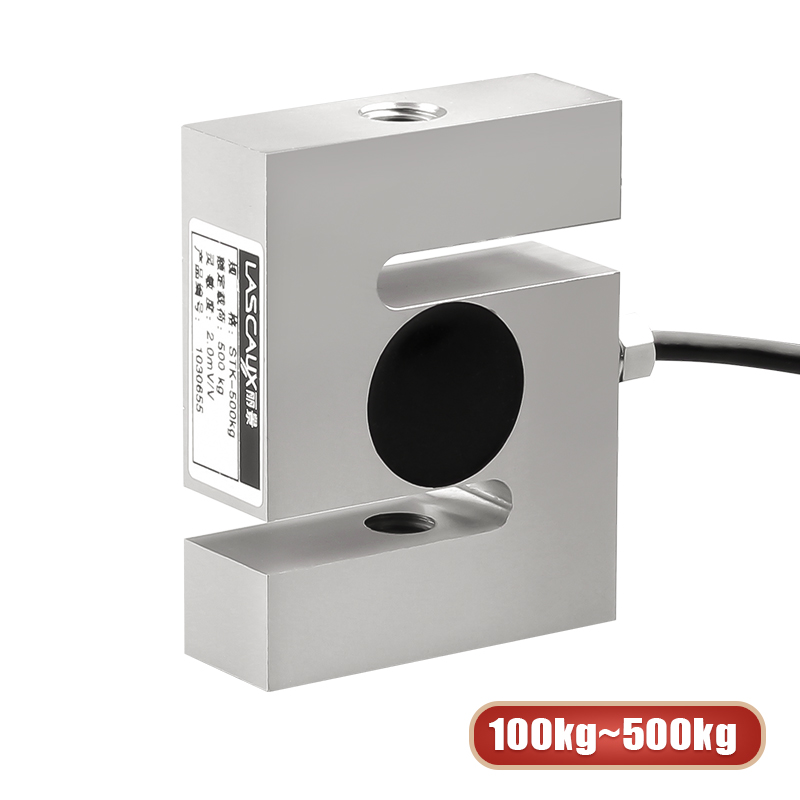

STK S Type Load Cell For Packaging Scales
Short Description:
The STK S Type Alloy Steel Load Cell is a high-precision sensor for packaging scales. Made from strong alloy steel, it handles tough conditions. It provides stable and reliable weight measurements for accurate product weighing.
Features:
1.Capacities (kg):5kg~500kg
2.High-quality aluminum, nickel-plated surface
3.Aluminum material optional
4.Protection class: IP65
5.Two-way force measurement, both tension and compression
6.Compact structure, easy installation
7.High comprehensive precision and good long-term stability
Applications:
- Mechatronic scales
- Doser feeder
- Hopper scales, tank scales
- Belt scales, packing scales
- Hook scales, forklift scales, crane scales
- Filling machine, ingredient weighing control
- Universal material testing machine
- Measurement of tension and pressure
Description:
The S-type load cell is named S-type load cell because of its special shape, and it is a dual-purpose sensor for tension and compression. Compact structure, easy installation and disassembly. STK is made of aluminum alloy, glue sealing process, surface anodization treatment, high comprehensive precision, good long-term stability, and the measuring range is from 10kg to 500kg, which is crossed with the STC model. The material and size have certain differences, and its usage is similar to STC .

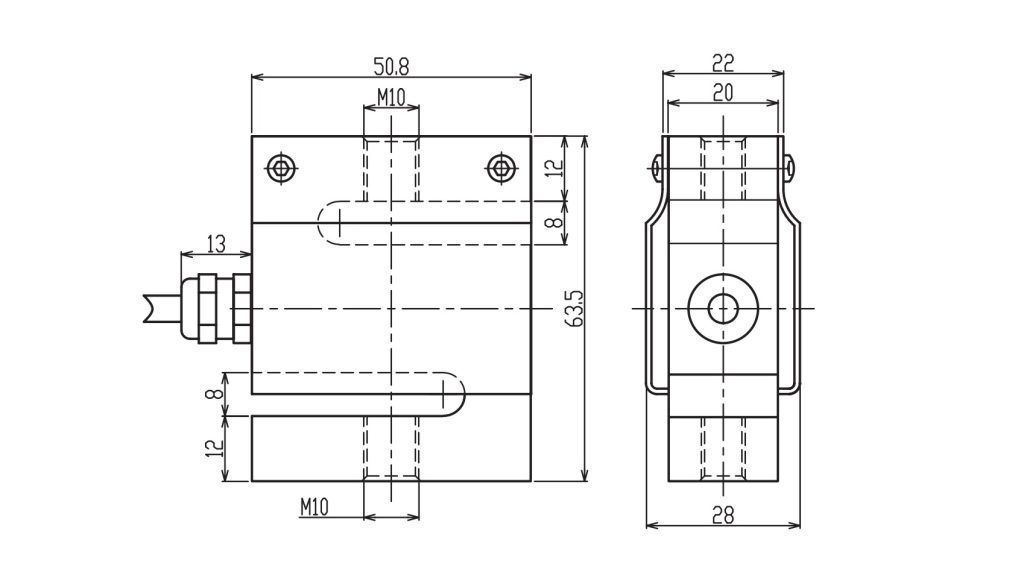

Dimensions:
Parameters：
| Specifications: | ||
| Rated Load | kg | 10,20,50,80,100,200,300,500 |
| Rated Output | mV/V | 2.0±0.0050 |
| Zero Balance | %R.O. | ±1 |
| Creep after 30 minutes | %R.O. | ±0.03 |
| Comprehensive Error | %R.O. | ±0.03 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.03 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.03 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Input impedance | Ω | 380±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 3 |

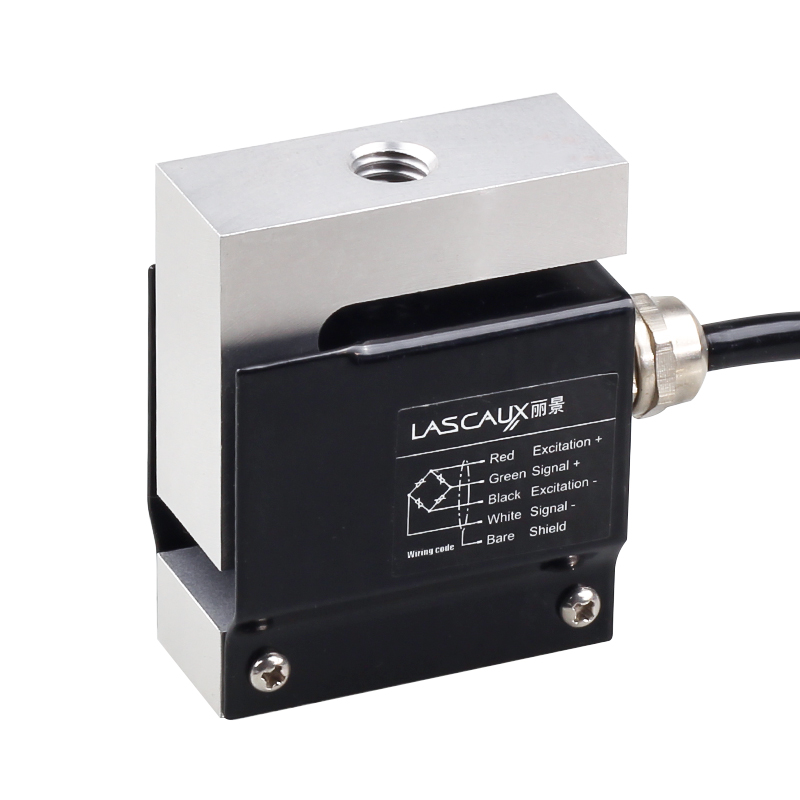

| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
